NSN 5985-00-069-3593

Part Details | ELECTRICAL DUMMY LOAD

5985-00-069-3593 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.

Alternate Parts: 8135FSC, 5985-00-069-3593, 00-069-3593, 5985000693593, 000693593

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-069-359300335 ( DUMMY LOAD, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

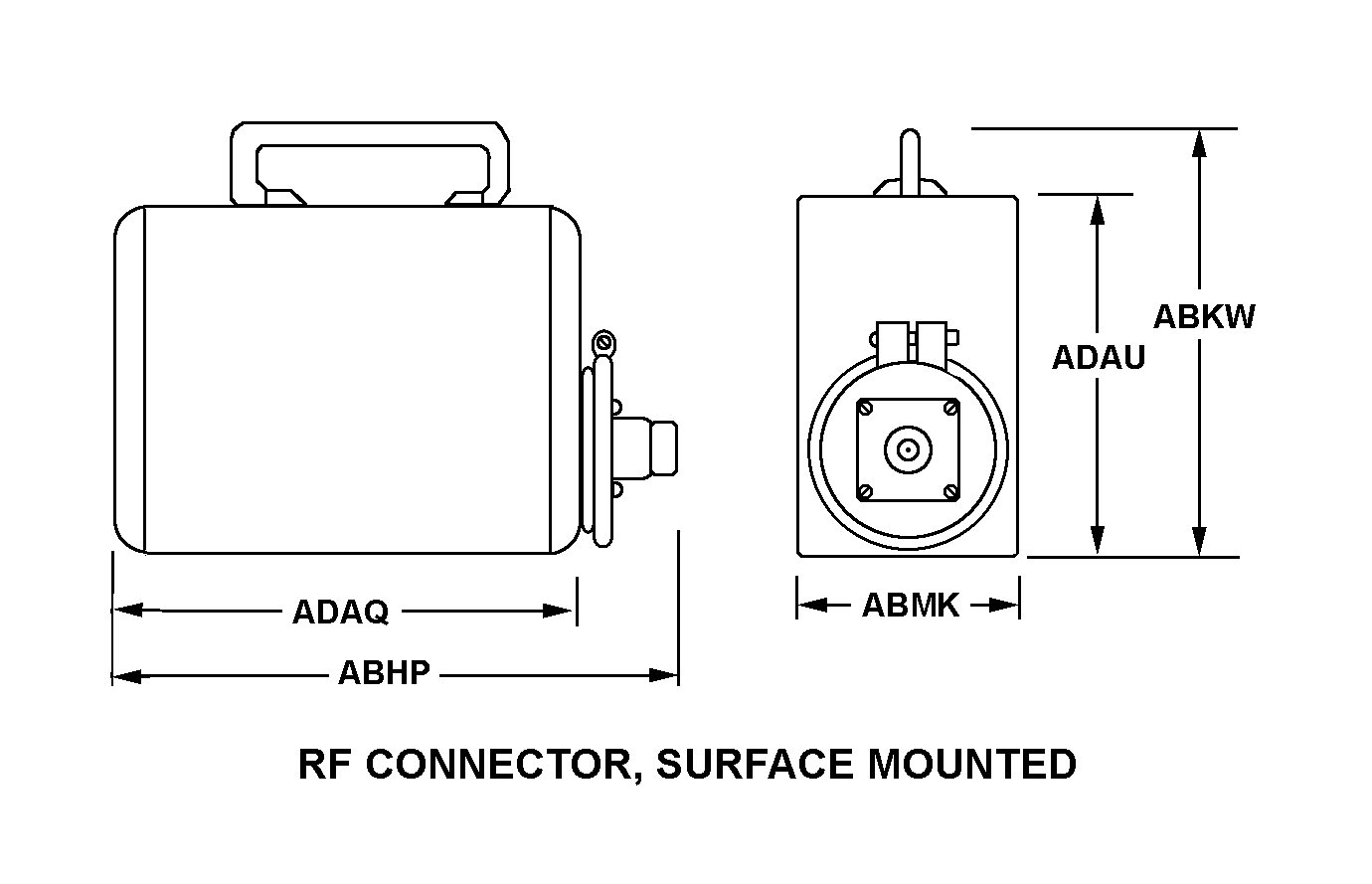

RF CONNECTOR, SURFACE MOUNTED

DUMMY LOAD,ELECTRIC | 5985-00-069-3593, 000693593
Cross Reference | NSN 5985-00-069-3593
Part Number Cage Code Manufacturer
8135FSC70998BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP
Technical Data | NSN 5985-00-069-3593
Characteristic Specifications
STYLE DESIGNATOR RF CONNECTOR, SURFACE MOUNTED
OVERALL LENGTH9.531 INCHES NOMINAL
OVERALL WIDTH3.937 INCHES NOMINAL
BODY HEIGHT6.375 INCHES NOMINAL
FREQUENCY RANGE RATING+0.000 TO +4.000 GIGAHERTZ
POWER RATING150.000 WATTS AVERAGE AND 250.000 WATTS PEAK
IMPEDANCE RATING IN OHMS50.0 NOMINAL
VOLTAGE STANDING WAVE RATIOB1.10$$B1.20
VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE+0.000 TO +1.000 GIGAHERTZ AND +1.000 TO +4.000 GIGAHERTZ
TERMINATION TYPE CONNECTION COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION QC
CONNECTOR END DESIGN FEMALE
COOLING METHOD SELF-COOLED
OPERATING POSITION ALL POSITIONS
