NSN 5985-00-069-1648
Part Details | VARIABLE ATTENUATOR
5985-00-069-1648 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: AV794FM5, AV794FM-5, STA11010800179, STA-1101-08-001-79, 794FM, 5985-00-069-1648, 00-069-1648, 5985000691648, 000691648
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 07, 1967 | 00-069-1648 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

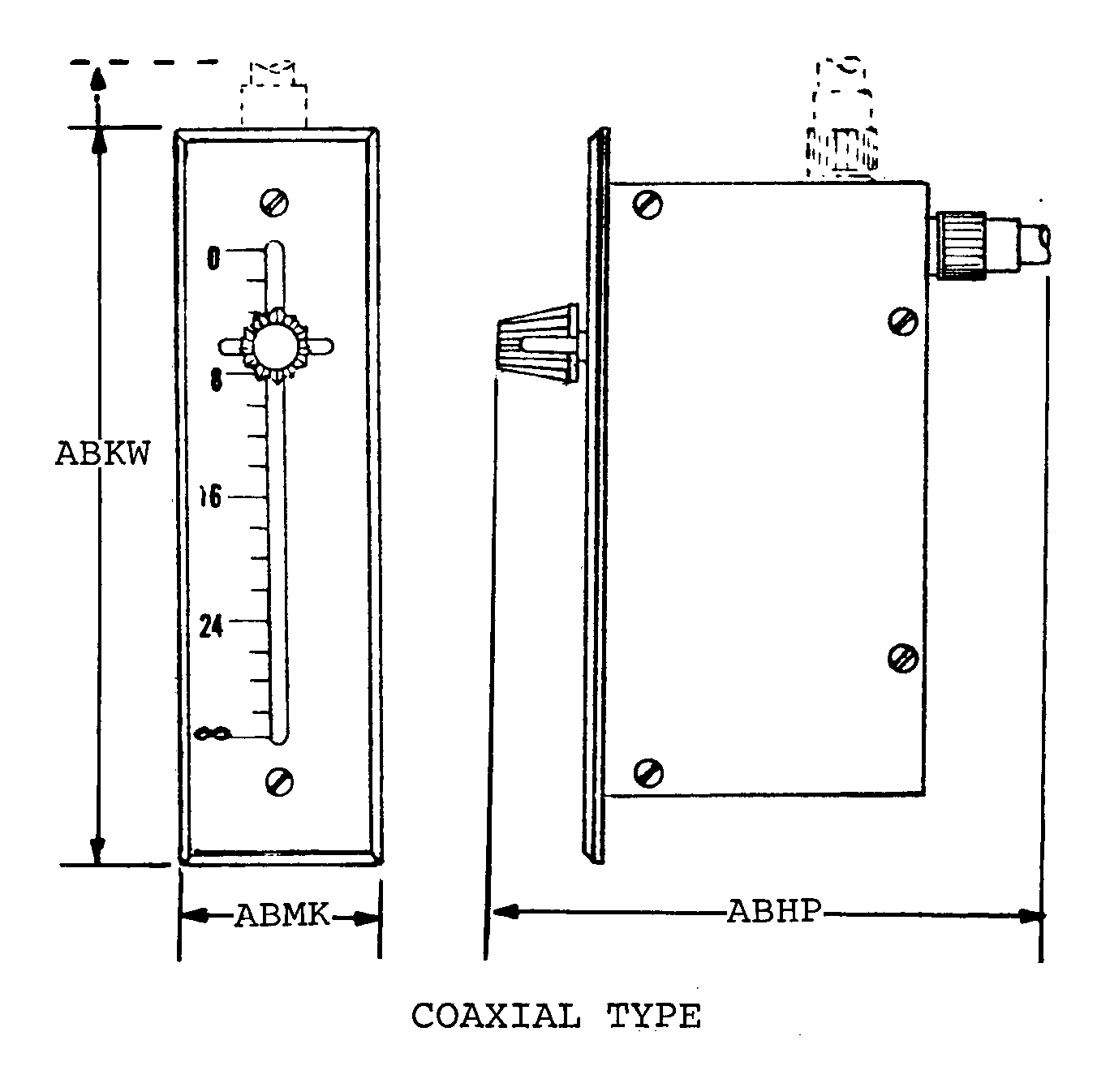

COAXIAL TYPE
Cross Reference | NSN 5985-00-069-1648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AV794FM-5 | 0R8N4 | ADVANCED TECHNICAL MATERIALS, INC.DBA A T M |
| STA-1101-08-001-79 | 34078 | CINCH CONNECTIVITY SOLUTIONS, INC. |
| 794FM | 99899 | L3 TECHNOLOGIES, INC.DBA NARDA MICROWAVE EAST |
Technical Data | NSN 5985-00-069-1648
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 4.000 GIGAHERTZ MINIMUM AND 8.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| POWER RATING | 10.0 WATTS AVERAGE AND 5.0 KILOWATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P40.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | M1.50/P1.50 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | COAXIAL TYPE |
| OVERALL LENGTH | 5.156 INCHES NOMINAL |
| OVERALL HEIGHT | 10.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 2 KNOB |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, COAXIAL, MALE AND 1 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.138 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.938 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 5.234 INCHES NOMINAL |
