NSN 5985-00-038-2454
Part Details | ANTENNA REFLECTOR
5985-00-038-2454 An object placed at a distance from a source of radiation, and designed to change the direction of incident radiation without appreciable transmission through it. It is used with an antenna. See also ANTENNA ELEMENT.
Alternate Parts: P62021AC, 5985-00-038-2454, 00-038-2454, 5985000382454, 000382454
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-038-2454 | 00244 ( REFLECTOR, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

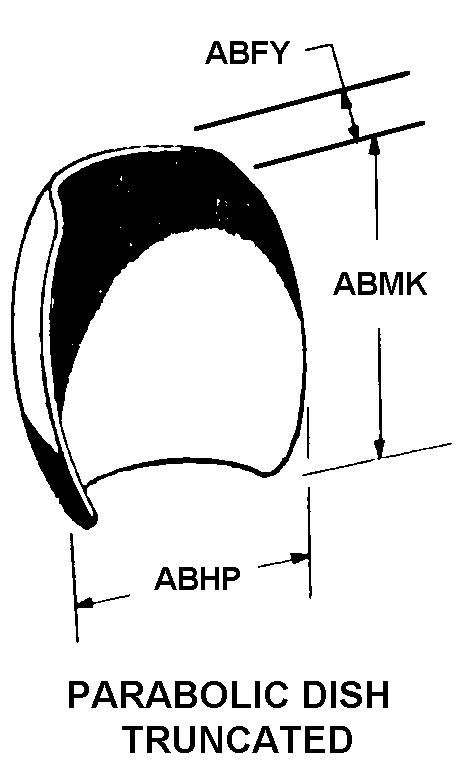

PARABOLIC DISH TRUNCATED
Cross Reference | NSN 5985-00-038-2454
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P62021AC | 24337 | GENERAL BRONZE ARCHITECTURALPRODUCTS DIV OF ALLIED PRODUCTS CORP |
Technical Data | NSN 5985-00-038-2454
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| STYLE DESIGNATOR | PARABOLIC DISH TRUNCATED |
| OVERALL DEPTH | 5.000 INCHES NOMINAL |
| OVERALL LENGTH | 6.708 FEET NOMINAL |
| OVERALL WIDTH | 3.063 FEET NOMINAL |
