NSN 5985-00-034-5268
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-034-5268 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: DKCR76, 30011559, 300-11559, DK162, 380A4387, 380A4387, 4100125000, 410-0125-000, SMC283206REVB, SMC283206, SM-C-283206, 5985-00-034-5268, 00-034-5268, 5985000345268, 000345268
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-034-5268 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

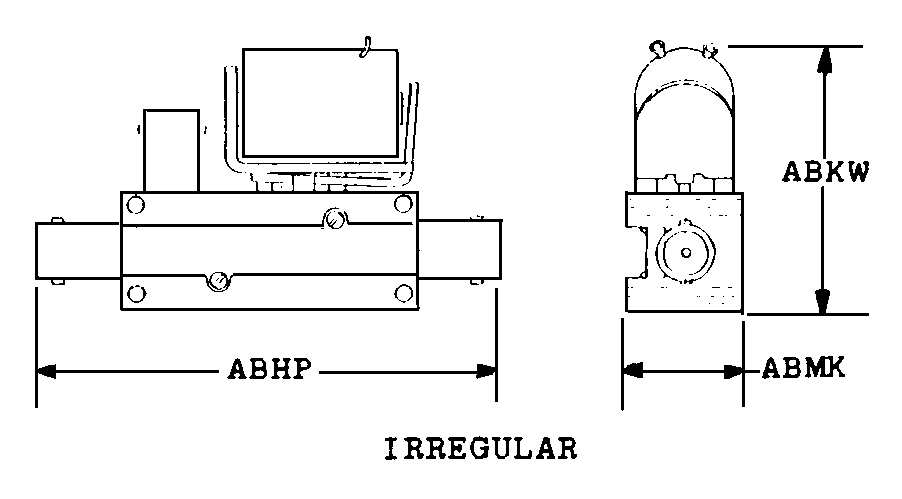

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-034-5268
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DKCR76 | 62165 | ARROWSMITH SHELBURNE INC |
| 300-11559 | 62165 | ARROWSMITH SHELBURNE INC |
| DK162 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 380A4387 | 1VPW8 | GENERAL DYNAMICS MISSION SYSTEMS,INC |
| 380A4387 | 94990 | MOTOROLA INC.DBA INTEGRATED INFORMATION SYSTEMS |
| 410-0125-000 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
| SMC283206REVB | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SM-C-283206 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5985-00-034-5268
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 MAXIMUM |
| RF MAXIMUM VOLTAGE RATING | 750.0 VOLTS RMS |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 5 |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG AND 2 CONNECTOR, RECEPTACLE AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | MB |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 2.063 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | -55.0 TO +85.0 DEG CELSIUS |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | BODY SILVER |
