NSN 5985-00-034-0950
Part Details | VARIABLE ATTENUATOR
5985-00-034-0950 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: SMC423299, 68992, 6899-2, 68992, 6899-2, SMC423299, 5985-00-034-0950, 00-034-0950, 5985000340950, 000340950
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-034-0950 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

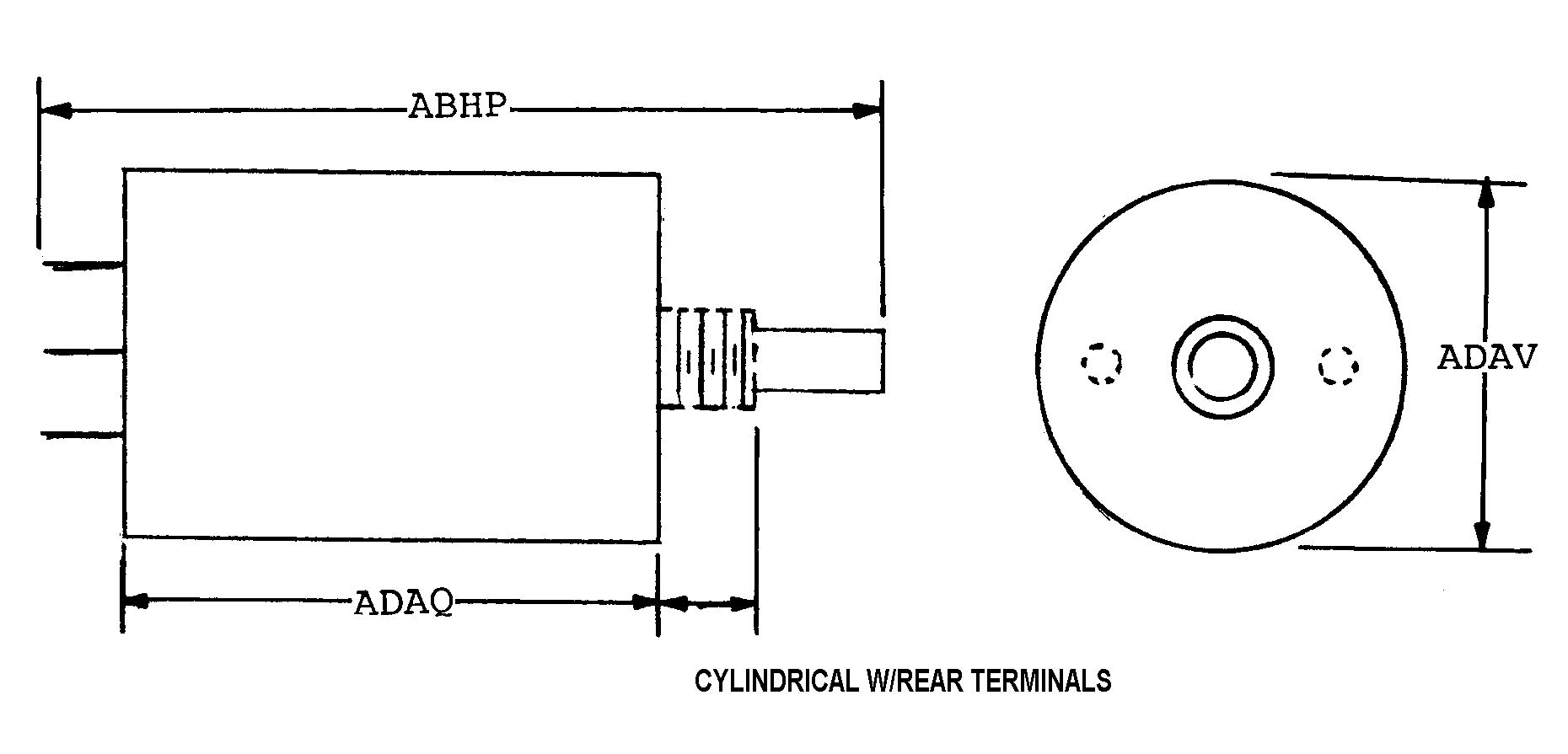

CYLINDRICAL W/REAR TERMINALS

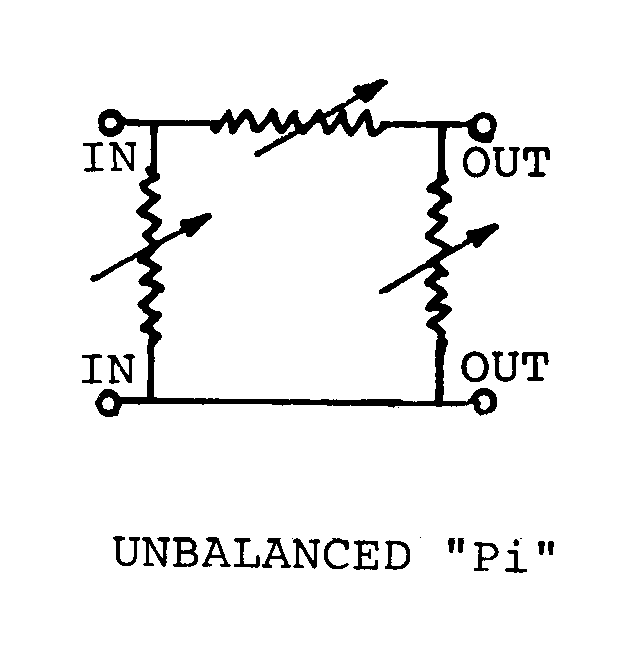

UNBALANCED "PI"
Cross Reference | NSN 5985-00-034-0950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMC423299 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 6899-2 | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
| 6899-2 | 28057 | SHALLCO, INC. |
| SMC423299 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5985-00-034-0950
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |
| SCHEMATIC DIAGRAM DESIGNATOR | UNBALANCED "PI" |
| FREQUENCY RANGE | 0.000 GIGAHERTZ MINIMUM AND 130.000 GIGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 600.0 INPUT AND 11100.0 OUTPUT |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P24.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | M4.80/P4.80 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 25 |
| ATTENUATION PER STEP IN DECIBELS | 2.0 |
| BODY STYLE | CYLINDRICAL W/REAR TERMINALS |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.370 INCHES NOMINAL |
| OVERALL WIDTH | 1.830 INCHES NOMINAL |
| BUSHING LENGTH | 0.375 INCHES NOMINAL |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND, FLATTED |
| FIRST FLAT LENGTH | 0.312 INCHES NOMINAL |
| FLAT HEIGHT | 0.205 INCHES NOMINAL |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.870 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNEF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.375 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| OPERATING TEMP RANGE | -20.0 TO +160.0 DEG FAHRENHEIT |
