NSN 5985-00-033-3996
Part Details | ELECTRICAL DUMMY LOAD
5985-00-033-3996 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Alternate Parts: 25TFT, 25T-FT, 8080TNCF, 8080FT, 7000850001, 700085-0001, 5985-00-033-3996, 00-033-3996, 5985000333996, 000333996
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 03, 1972 | 00-033-3996 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

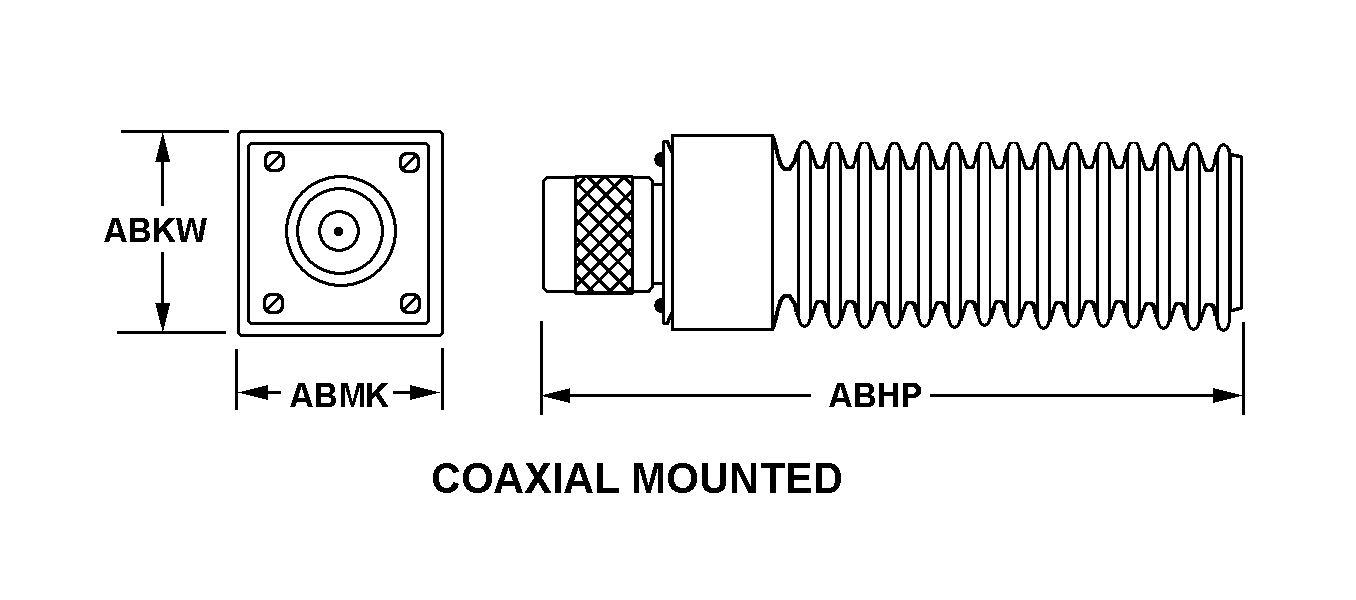

COAXIAL MOUNTED
Cross Reference | NSN 5985-00-033-3996
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25T-FT | 70998 | BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP |
| 8080TNCF | 70998 | BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP |
| 8080FT | 70998 | BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP |
| 700085-0001 | 65597 | THALES DEFENSE & SECURITY, INC. |
Technical Data | NSN 5985-00-033-3996
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COAXIAL MOUNTED |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| FREQUENCY RANGE RATING | +0.000 TO +3.500 GIGAHERTZ |
| POWER RATING | 25.000 WATTS AVERAGE |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | +0.000 TO +3.500 GIGAHERTZ |
| TERMINATION TYPE | CONNECTION COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| SPECIAL FEATURES | 5.000 IN LG,1.250 IN W,1.250 IN H |
