NSN 5985-00-032-7023
Part Details | VARIABLE ATTENUATOR
5985-00-032-7023 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 200042648, 5985-00-032-7023, 00-032-7023, 5985000327023, 000327023
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 28, 1972 | 00-032-7023 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

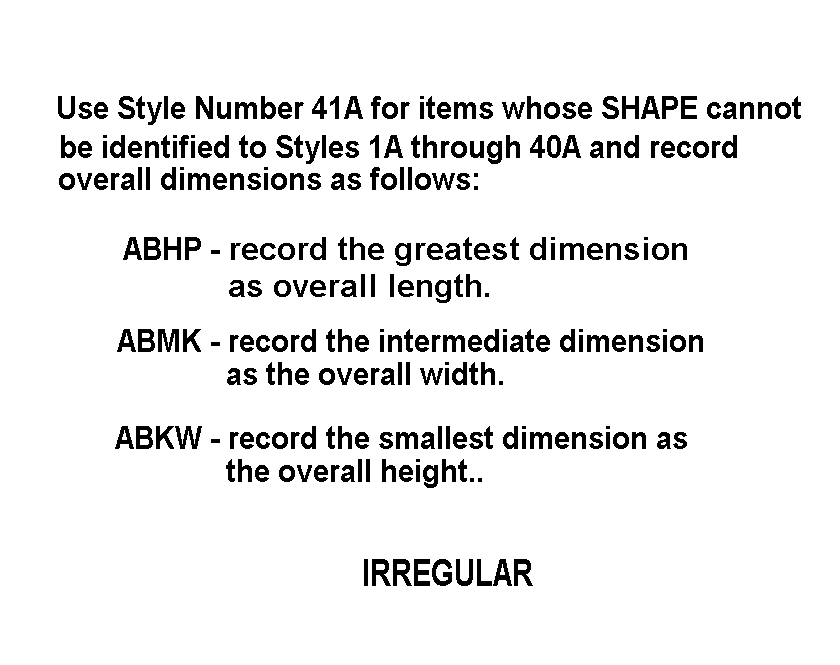

IRREGULAR
Cross Reference | NSN 5985-00-032-7023
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200042648 | 01220 | SYSTRON-DONNER CORPMICROWAVE/INSTRUMENT DIV |
Technical Data | NSN 5985-00-032-7023
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 2.062 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| TERMINAL TYPE AND QUANTITY | 1 SOLDER STUD |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDE AND RELATED EQUIPMENT |
