NSN 5985-00-026-8693
Part Details | ANTENNA SUPPORT
5985-00-026-8693 An item which consists of a mechanical or structural part designed to overcome the force of gravity, but is not intended to be the principal sustaining member of an antenna.
Alternate Parts: NL6933115H, NL69331-15H, 5985-00-026-8693, 00-026-8693, 5985000268693, 000268693
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-026-8693 | 02487 ( SUPPORT, ANTENNA ) |
REFERENCE DRAWINGS & PICTURES

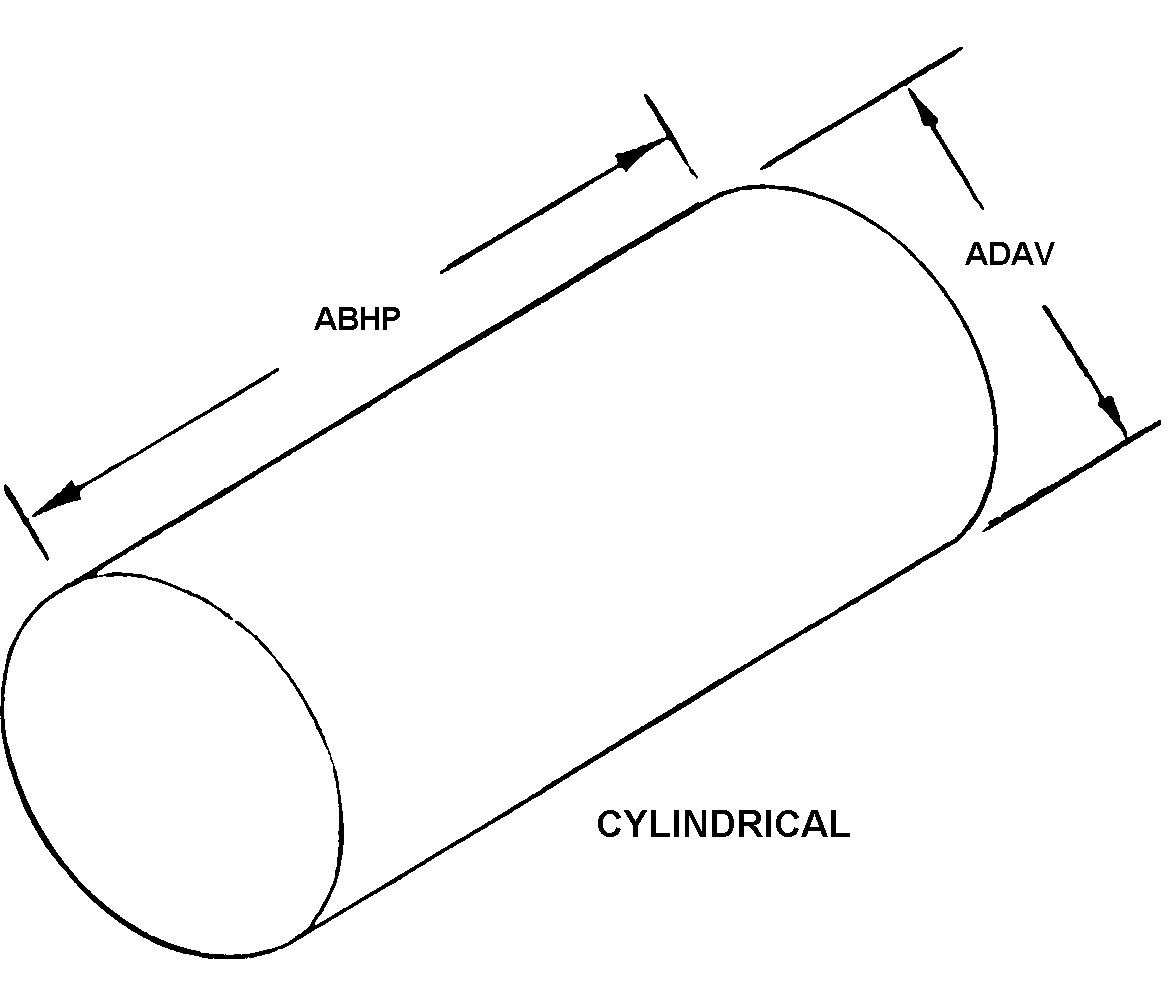

CYLINDRICAL
Cross Reference | NSN 5985-00-026-8693
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NL69331-15H | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
Technical Data | NSN 5985-00-026-8693
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ENAMEL |
| MOUNTING METHOD | CLAMP |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING FACILITY CIRCLE RADIUS | 2.500 INCHES NOMINAL |
| BASIC SHAPE STYLE | CYLINDRICAL |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| OVERALL DIAMETER | 9.437 INCHES NOMINAL |
| FSC APPLICATION DATA | RADIO SET |
