NSN 5985-00-024-9672

Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH

5985-00-024-9672 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).

Alternate Parts: 355904001, 355-904-001, SR2ND, 5985-00-024-9672, 00-024-9672, 5985000249672, 000249672

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59OCT 19, 197200-024-967205298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE )

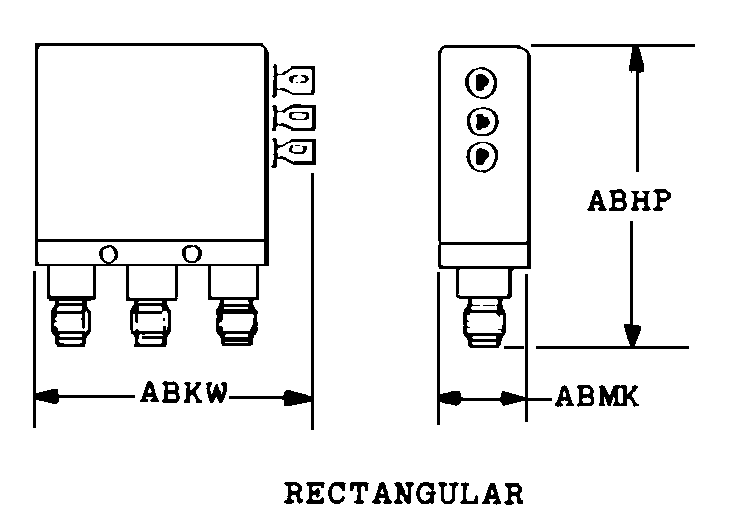

REFERENCE DRAWINGS & PICTURES

RECTANGULAR

SWITCH,RADIO FREQUE | 5985-00-024-9672, 000249672
Cross Reference | NSN 5985-00-024-9672
Part Number Cage Code Manufacturer
355-904-00107421INTERSTATE ELECTRONICS CORPORATIONDBA L-3 INTERSTATE ELECTRONICS
SR2ND12598R L C ELECTRONICS, INC.
Technical Data | NSN 5985-00-024-9672
Characteristic Specifications
ACTUATOR OPERATING METHOD RELAY
ACTUATOR CURRENT TYPE AND RATING IN AMPS0.3 DC NOMINAL
ACTUATOR VOLTAGE IN VOLTS28.0 NOMINAL
SWITCH TYPE NONTRANSFER
POLE QUANTITY1
THROW QUANTITY2
COUPLING POSITION QUANTITY3
TERMINAL TYPE AND QUANTITY2 TURRET AND 3 RECEPTACLE, COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION N
CONNECTOR END DESIGN FEMALE
SWITCH OPERATION SEQUENCE BREAKS BEFORE MAKES
SWITCHING TIME15.0 MILLISECONDS
SWITCH RETURN MECHANISM TYPE FAIL-SAFE
BODY STYLE RECTANGULAR
OVERALL LENGTH2.620 INCHES MINIMUM AND 2.680 INCHES MAXIMUM
OVERALL HEIGHT2.850 INCHES NOMINAL
OVERALL WIDTH1.000 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY2 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM
UNPACKAGED UNIT WEIGHT9.000 OUNCES
