NSN 5985-00-022-9059
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-022-9059 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 909C70200, 401T430832, 401T-430832, 19703691, 1970369-1, 19703691, 1970369-1, 909C70200, 909C70200, S4563, S-4563, 5985-00-022-9059, 00-022-9059, 5985000229059, 000229059
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 19, 1972 | 00-022-9059 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

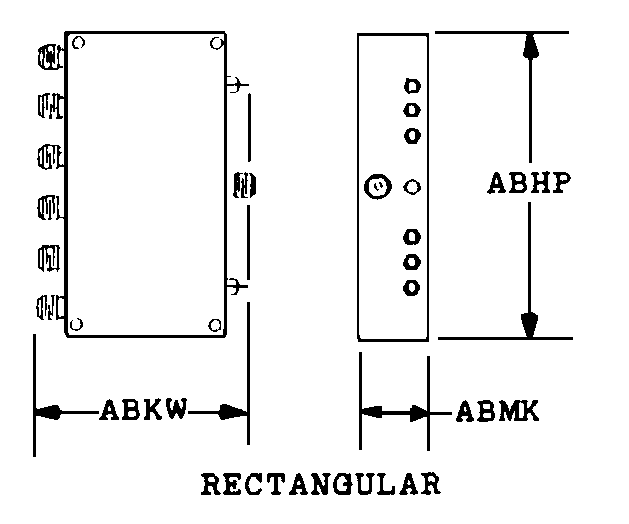

RECTANGULAR
Cross Reference | NSN 5985-00-022-9059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 909C70200 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 401T-430832 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 1970369-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICSSYSTEMS FORMER BENDIX NAVIGATION AND |
| 1970369-1 | 55974 | HONEYWELL INTL INCDEFENSE AVIONICS SYSTEMS |
| 909C70200 | 50140 | K&L MICROWAVE, INC. |
| 909C70200 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
| S-4563 | 12598 | R L C ELECTRONICS, INC. |
Technical Data | NSN 5985-00-022-9059
| Characteristic | Specifications |
|---|---|
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.3 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG AND 3 PLUG, COAXIAL |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 20.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | LATCHING |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.340 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.250 INCHES MAXIMUM |
| OVERALL WIDTH | 0.500 INCHES MAXIMUM |
| OPERATING TEMP RANGE | -54.0 TO +85.0 DEG CELSIUS |
