NSN 5985-00-022-7811

Part Details | WAVEGUIDE ASSEMBLY

5985-00-022-7811 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.

Alternate Parts: 6519111, 651911-1, 5985-00-022-7811, 00-022-7811, 5985000227811, 000227811

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59OCT 19, 197200-022-781100305 ( WAVEGUIDE ASSEMBLY )
REFERENCE DRAWINGS & PICTURES

INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR

WAVEGUIDE ASSEMBLY | 5985-00-022-7811, 000227811

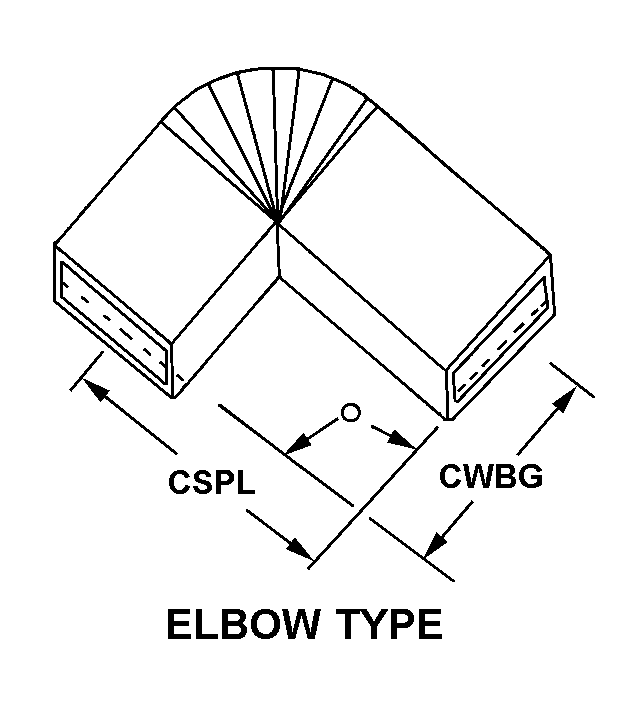

ELBOW TYPE

WAVEGUIDE ASSEMBLY | 5985-00-022-7811, 000227811
Cross Reference | NSN 5985-00-022-7811
Part Number Cage Code Manufacturer
651911-196214RAYTHEON COMPANYDBA RAYTHEON
Technical Data | NSN 5985-00-022-7811
Characteristic Specifications
STYLE DESIGNATOR ELBOW TYPE
WAVEGUIDE LONGER OFFSET DISTANCE4.225 INCHES MAXIMUM
WAVEGUIDE OFFSET DISTANCE4.225 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR
WAVEGUIDE OUTSIDE WIDTH3.000 INCHES NOMINAL
WAVEGUIDE INSIDE WIDTH2.840 INCHES NOMINAL
WAVEGUIDE INSIDE HEIGHT1.340 INCHES NOMINAL
WAVEGUIDE OUTSIDE HEIGHT1.500 INCHES NOMINAL
FLANGE QUANTITY2
MAXIMUM OPERATING PRESSURE5.0 POUNDS PER SQUARE INCH GAGE
