NSN 5985-00-021-6343
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-021-6343 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 3601189212, 360-11892-12, 5985-00-021-6343, 00-021-6343, 5985000216343, 000216343
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 10, 1968 | 00-021-6343 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

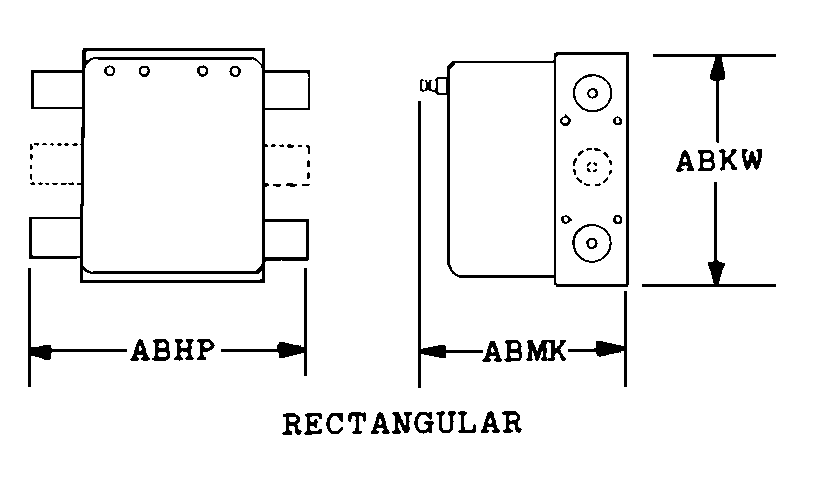

RECTANGULAR
Cross Reference | NSN 5985-00-021-6343
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 360-11892-12 | 62165 | ARROWSMITH SHELBURNE INC |
Technical Data | NSN 5985-00-021-6343
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 26.0 NOMINAL |
| RF MAXIMUM VOLTAGE RATING | 1.0 KILOVOLTS PEAK |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 TURRET AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 25.0 MILLISECONDS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| OVERALL HEIGHT | 2.375 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 8 THREADED HOLE |
| OPERATING TEMP RANGE | -55.0 TO +100.0 DEG CELSIUS |
