NSN 5985-00-014-2669

Part Details | WAVEGUIDE ASSEMBLY

5985-00-014-2669 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.

Alternate Parts: 2379778, 2269574, 5985-00-014-2669, 00-014-2669, 5985000142669, 000142669

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196100-014-266900305 ( WAVEGUIDE ASSEMBLY )
REFERENCE DRAWINGS & PICTURES

INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR

WAVEGUIDE ASSEMBLY | 5985-00-014-2669, 000142669

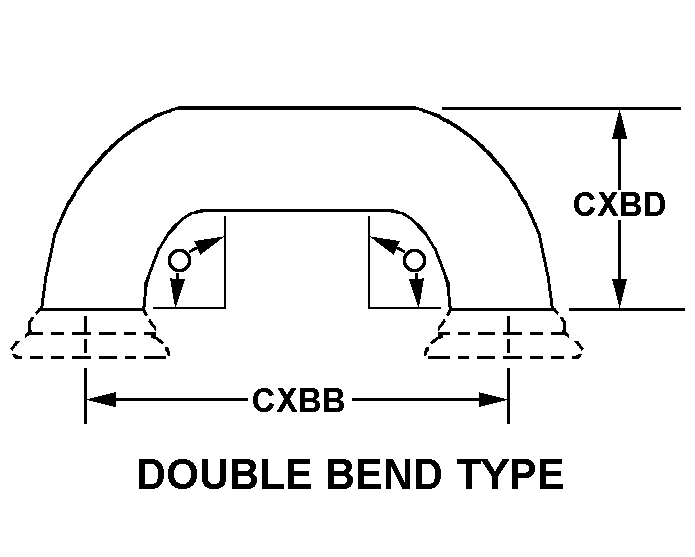

DOUBLE BEND TYPE

WAVEGUIDE ASSEMBLY | 5985-00-014-2669, 000142669
Cross Reference | NSN 5985-00-014-2669
Part Number Cage Code Manufacturer
237977856232LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN
226957410001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
Technical Data | NSN 5985-00-014-2669
Characteristic Specifications
STYLE DESIGNATOR DOUBLE BEND TYPE
WAVEGUIDE CENTER TO CENTER DISTANCE9.375 INCHES NOMINAL
WAVEGUIDE HEIGHT2.875 INCHES NOMINAL
CROSS-SECTIONAL SHAPE STYLE INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR
WAVEGUIDE OUTSIDE WIDTH1.995 INCHES MINIMUM AND 2.005 INCHES MAXIMUM
WAVEGUIDE INSIDE WIDTH1.867 INCHES MINIMUM AND 1.877 INCHES MAXIMUM
WAVEGUIDE INSIDE HEIGHT0.867 INCHES MINIMUM AND 0.877 INCHES MAXIMUM
WAVEGUIDE OUTSIDE HEIGHT0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM
FLANGE QUANTITY2
MAXIMUM OPERATING PRESSURE40.0 POUNDS PER SQUARE INCH GAGE
SPECIAL FEATURESFLANGE FACES FREE OF PAINT,63.0 IN. MICROINCH FINISH
FSC APPLICATION DATAANTENNAS,WAVEGUIDES,AND RELATED EQUIP.
