NSN 5985-00-012-5756

Part Details | WAVEGUIDE ASSEMBLY

5985-00-012-5756 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.

Alternate Parts: 28AT191K, 28AT19-1K, 105254, 10-5254, 577R203H02, 5985-00-012-5756, 00-012-5756, 5985000125756, 000125756

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196100-012-575600305 ( WAVEGUIDE ASSEMBLY )
REFERENCE DRAWINGS & PICTURES

INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR

WAVEGUIDE ASSEMBLY | 5985-00-012-5756, 000125756

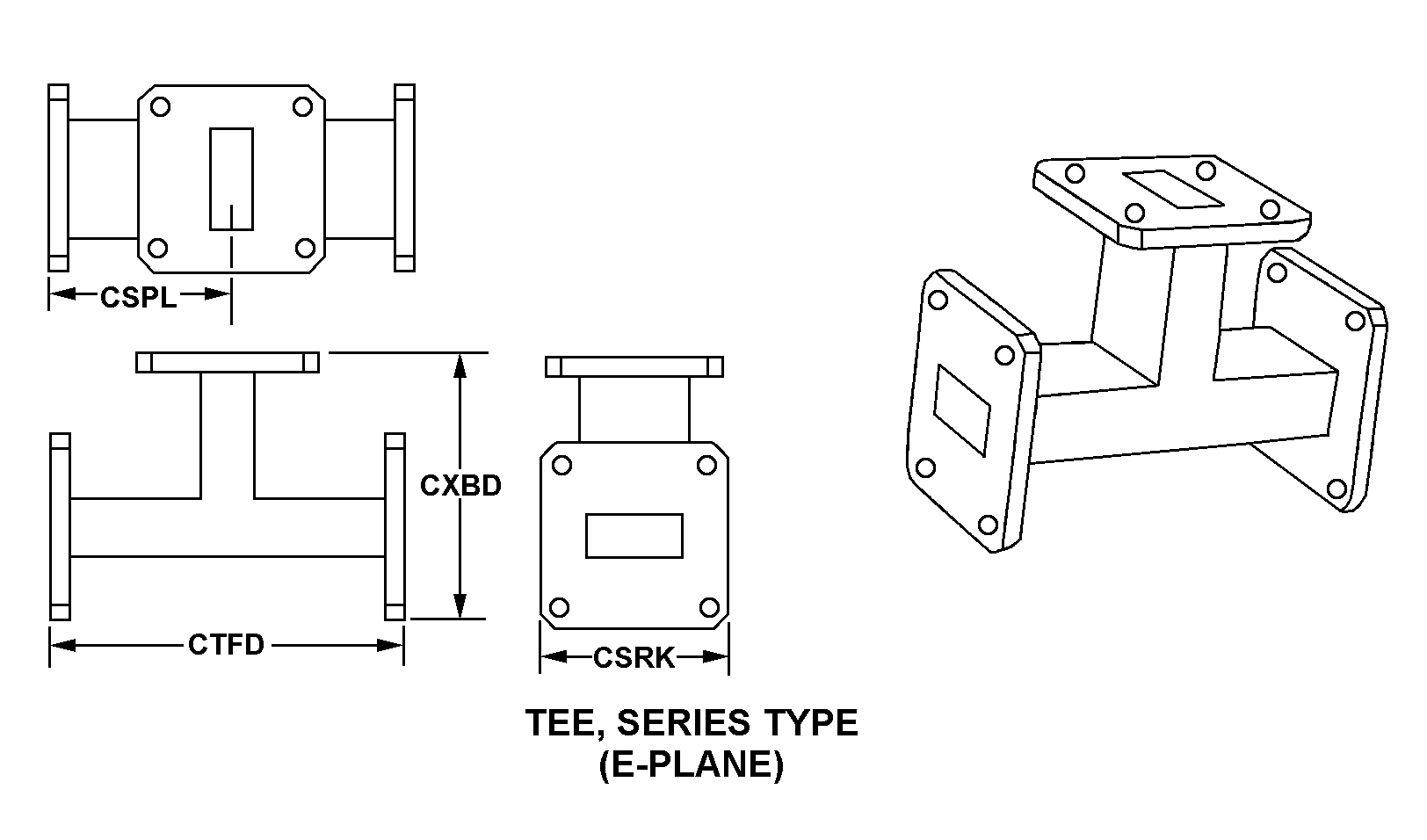

TEE, SERIES TYPE

WAVEGUIDE ASSEMBLY | 5985-00-012-5756, 000125756
Cross Reference | NSN 5985-00-012-5756
Part Number Cage Code Manufacturer
28AT19-1K01456MICROWAVE DEVELOPMENT LABORATORIES,INC.
10-525401456MICROWAVE DEVELOPMENT LABORATORIES,INC.
577R203H0297942NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS
Technical Data | NSN 5985-00-012-5756
Characteristic Specifications
STYLE DESIGNATOR TEE, SERIES TYPE
WAVEGUIDE LONGER OFFSET DISTANCE1.640 INCHES NOMINAL
WAVEGUIDE WIDTH0.750 INCHES NOMINAL
WAVEGUIDE LENGTH3.322 INCHES NOMINAL
WAVEGUIDE HEIGHT2.425 INCHES NOMINAL
CROSS-SECTIONAL SHAPE STYLE INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR
WAVEGUIDE OUTSIDE WIDTH0.360 INCHES NOMINAL
WAVEGUIDE INSIDE WIDTH0.280 INCHES NOMINAL
WAVEGUIDE INSIDE HEIGHT0.140 INCHES NOMINAL
WAVEGUIDE OUTSIDE HEIGHT0.220 INCHES NOMINAL
FLANGE QUANTITY3
SPECIAL FEATURESGOLD PLATED ON EXTERNAL SURFACES ONLY
PRECIOUS MATERIAL GOLD
PRECIOUS MATERIAL AND LOCATIONEXTERNAL SURFACES GOLD
