NSN 5985-00-009-0807

Part Details | VARIABLE ATTENUATOR

5985-00-009-0807 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).

Alternate Parts: AE939043, AE93-90-43, AE93901, AE93-90-1, AF939043, AF93-90-43, 5985-00-009-0807, 00-009-0807, 5985000090807, 000090807

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUL 28, 197200-009-080700838 ( ATTENUATOR, VARIABLE )
REFERENCE DRAWINGS & PICTURES

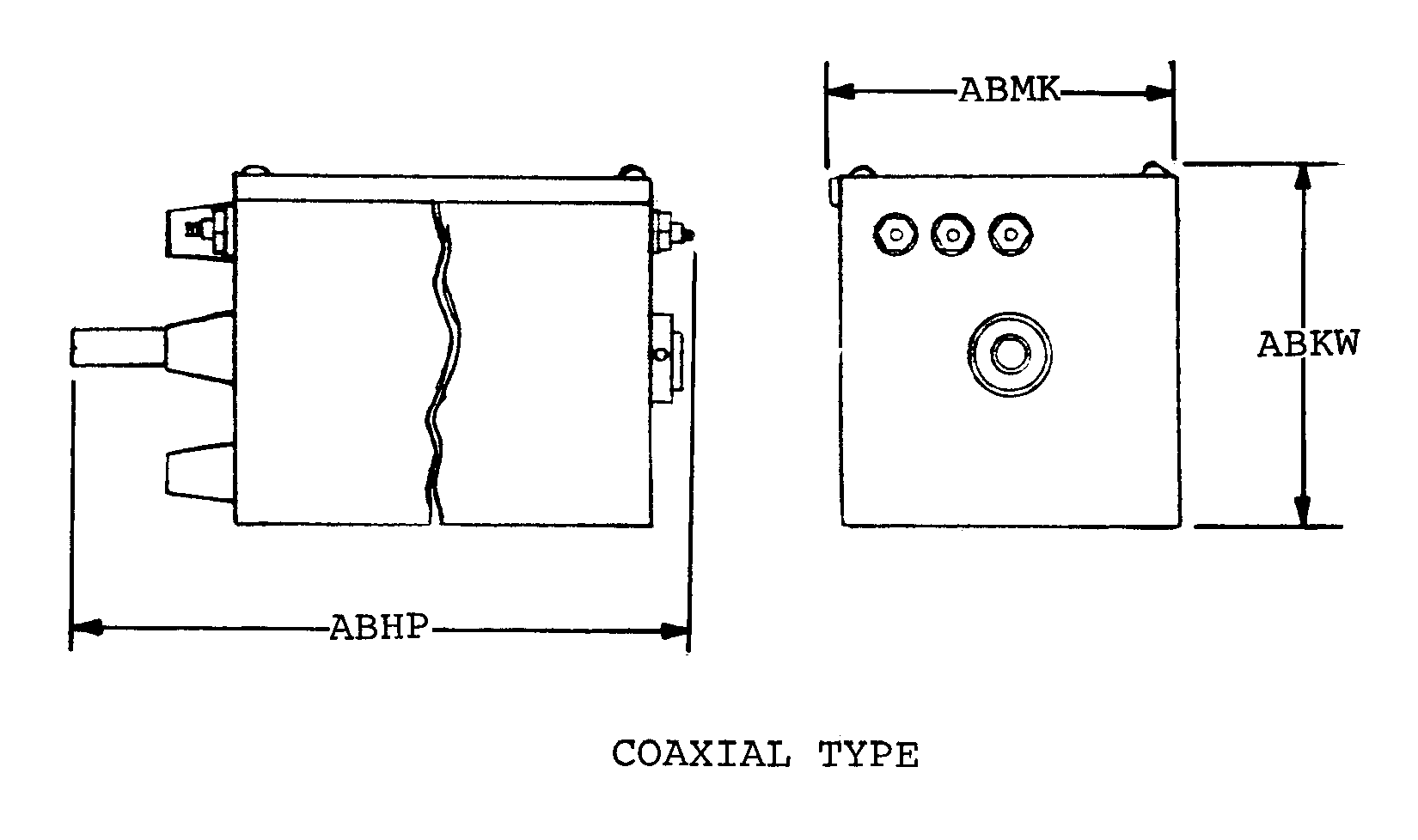

COAXIAL TYPE

ATTENUATOR,VARIABLE | 5985-00-009-0807, 000090807
Cross Reference | NSN 5985-00-009-0807
Part Number Cage Code Manufacturer
AE93-90-4393459API / WEINSCHEL, INC.
AE93-90-193459API / WEINSCHEL, INC.
AF93-90-4393459API / WEINSCHEL, INC.
Technical Data | NSN 5985-00-009-0807
Characteristic Specifications
APPLICATION DESIGN TRANSMISSION LINE
FREQUENCY RANGE0.000 GIGAHERTZ MINIMUM AND 12.400 GIGAHERTZ MAXIMUM
VOLTAGE STANDING WAVE RATIO1.45
POWER RATING1.0 WATTS AVERAGE AND 500.0 WATTS PEAK
INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS0.8
OVERALL ATTENUATION RANGE IN DECIBELSP0.0/P90.0
OVERALL ATTENUATION ACCURACY IN DECIBELSM3.00/P3.00
ATTENUATION VARIATION METHOD STEPPED
STEP POSITION QUANTITY10
ATTENUATION PER STEP IN DECIBELS9.0
BODY STYLE COAXIAL TYPE
OVERALL LENGTH6.250 INCHES NOMINAL
OVERALL HEIGHT3.120 INCHES NOMINAL
OVERALL WIDTH5.000 INCHES NOMINAL
ADJUSTMENT DEVICE TYPE AND QUANTITY1 KNOB
TERMINAL TYPE AND QUANTITY1 CONNECTOR, COAXIAL, FEMALE AND 1 CONNECTOR, COAXIAL, MALE
COAXIAL CONNECTOR SERIES DESIGNATION N
SCALE LINEARITY LINEAR
