NSN 5985-00-008-8384

Part Details | ELECTRICAL DUMMY LOAD

5985-00-008-8384 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.

Alternate Parts: 9897551, 98975-51, G350310S2, 330812, 3308-12, 5985-00-008-8384, 00-008-8384, 5985000088384, 000088384

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUL 23, 197200-008-838400335 ( DUMMY LOAD, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

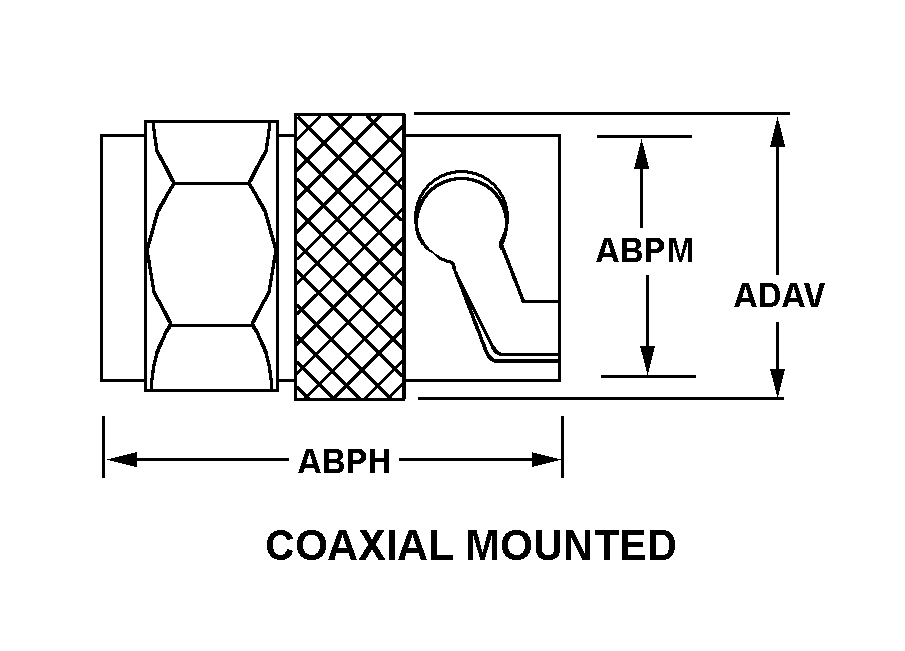

COAXIAL MOUNTED

DUMMY LOAD,ELECTRIC | 5985-00-008-8384, 000088384
Cross Reference | NSN 5985-00-008-8384
Part Number Cage Code Manufacturer
98975-5174868AMPHENOL CORPORATIONDIV AMPHENOL RF
G350310S224930HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR
3308-1260674MICROWAVE DEVICES INC
Technical Data | NSN 5985-00-008-8384
Characteristic Specifications
STYLE DESIGNATOR COAXIAL MOUNTED
OVERALL LENGTH1.270 INCHES MAXIMUM
OVERALL DIAMETER0.560 INCHES NOMINAL
FREQUENCY RANGE RATING+0.000 TO +10.000 GIGAHERTZ
POWER RATING1.000 WATTS AVERAGE
IMPEDANCE RATING IN OHMS51.0 NOMINAL
VOLTAGE STANDING WAVE RATIO1.20
VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE+0.000 TO +10.000 GIGAHERTZ
TERMINATION TYPE CONNECTION COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION BNC
CONNECTOR END DESIGN FEMALE
COOLING METHOD SELF-COOLED
OPERATING POSITION HORIZONTAL
