NSN 5977-00-405-4852
Part Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-405-4852 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Alternate Parts: 491800, 5977-00-405-4852, 00-405-4852, 5977004054852, 004054852
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 05, 1971 | 00-405-4852 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |

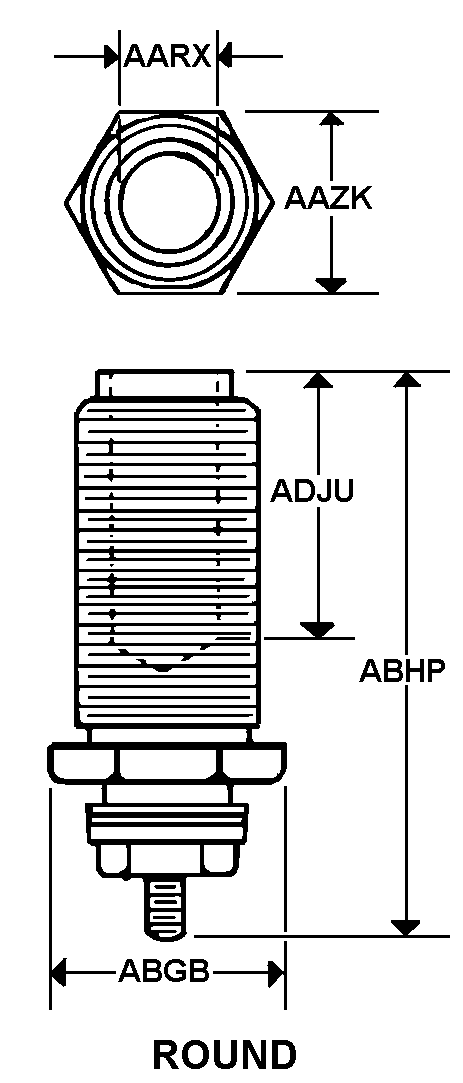

REFERENCE DRAWINGS & PICTURES
ROUND
Cross Reference | NSN 5977-00-405-4852
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 491800 | 72850 | PUROLATOR PRODUCTS CO DIV MOTORCOMPONENTS LLC |
Technical Data | NSN 5977-00-405-4852
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| INSIDE DIAMETER | 0.219 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.866 INCHES NOMINAL |
| WIDTH ACROSS CORNERS | 0.994 INCHES NOMINAL |
| OVERALL LENGTH | 3.437 INCHES NOMINAL |
| INSIDE LENGTH | 2.562 INCHES NOMINAL |
| CONTACT END BEVEL | NOT INCLUDED |
| TERMINAL TYPE | SOLDER LUG |
| TERMINAL QUANTITY | 1 |
| TOP THREAD LOCATION | EXTERNAL |
| CAP | NOT INCLUDED |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | HELICAL COMPRESSION |
| BRUSH SPRING ADJUSTABILITY | NONADJUSTABLE |
| BRUSH PRESSURE SPRING | INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
| FURNISHED ITEMS AND QUANTITY | 1 BRUSH |
