Part Details | ELECTRICAL CONTACT BRUSH

5977-00-379-4328 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.

Alternate Parts: 616112, 6161-12, 6161, 120726, PD5663, PD-5663, ANSINEMA PUB NO. CB1, ANSI/NEMA PUB NO. CB1, 5977-00-379-4328, 00-379-4328, 5977003794328, 003794328

REFERENCE DRAWINGS & PICTURES

RECTANGULAR SLIP RING

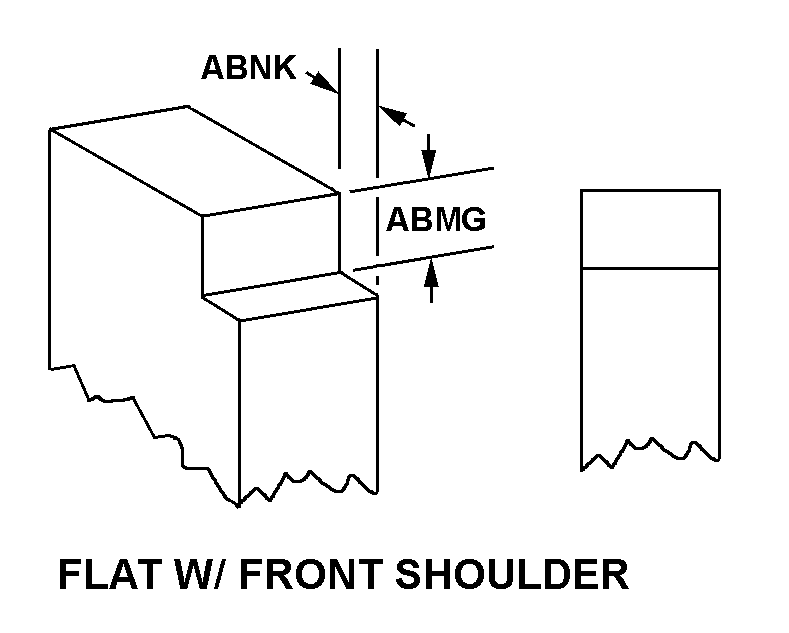

FLAT WITH FRONT SHOULDER

CONCAVE

ONE PIECE
