NSN 5977-00-351-6952

Part Details | ELECTRICAL CONTACT BRUSH

5977-00-351-6952 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.

Alternate Parts: A2956, A-2956, A2956, A-2956, RC113601, RC11-3601, SCD1043651, SC-D-104365-1, 5977-00-351-6952, 00-351-6952, 5977003516952, 003516952

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-351-695200302 ( BRUSH, ELECTRICAL CONTACT )
REFERENCE DRAWINGS & PICTURES

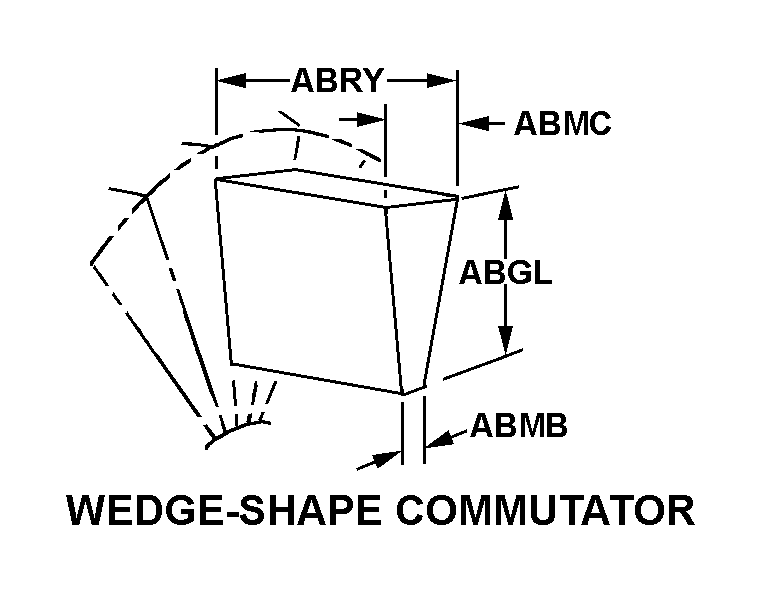

WEDGE-SHAPE COMMUTATOR

BRUSH,ELECTRICAL CO | 5977-00-351-6952, 003516952

FLAT

BRUSH,ELECTRICAL CO | 5977-00-351-6952, 003516952

FLAT

BRUSH,ELECTRICAL CO | 5977-00-351-6952, 003516952

PAIRED

BRUSH,ELECTRICAL CO | 5977-00-351-6952, 003516952
Cross Reference | NSN 5977-00-351-6952
Part Number Cage Code Manufacturer
A-295624652ARCO ELECTRIC PRODUCTS CORP
A-295608835DYNA CORP
RC11-36010AHP6NATIONAL ELECTRICAL CARBON PRODUCTS,INC.
SC-D-104365-180063US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS
Technical Data | NSN 5977-00-351-6952
Characteristic Specifications
STYLE DESIGNATOR PAIRED
MATERIAL CARBON
MATERIAL DOCUMENT AND CLASSIFICATIONNATIONAL CARBON CO GRADE CF35 MFR REF SINGLE MATERIAL RESPONSE
BODY STYLE WEDGE-SHAPE COMMUTATOR
WIDTH1.120 INCHES NOMINAL
MINOR THICKNESS0.200 INCHES NOMINAL
MAJOR THICKNESS0.340 INCHES NOMINAL
LENGTH1.375 INCHES NOMINAL
CONTACT FACE STYLE FLAT
TOP STYLE FLAT
SHUNT INSULATION PROVISION AND QUANTITY1 UNINSULATED
