NSN 5975-00-284-6655
Part Details | ELECTRICAL CONDUIT ADAPTER
5975-00-284-6655 An item designed to couple or join two different types or sizes of conduits, and/or to be inserted in the opening of a conduit outlet or box to accommodate a conduit of a larger or smaller size; or it may be designed with internal thread on one end for mating with an electrical connector and an external thread on the other end for mating with a conduit coupling nut; or to establish necessary mechanical accommodations between an electrical conduit, conduit assembly and an electrical connector. Excludes REDUCING WASHER, KNOCKOUT and BOX CONNECTOR, ELECTRICAL. See also ADAPTER, CABLE TO CONNECTOR; and CHASE NIPPLE, CONDUIT.
Alternate Parts: AS10177PT1410, AA50553I1H4, AA50553-I-1-H-4, AA50553, A-A-50553, AA5055311H402S, AA50553-1-1-H-4-02-S, WF408, FEDSTD156, 1256507, 1632, 710098031, 710098-031, 10105399, 5975-00-284-6655, 00-284-6655, 5975002846655, 002846655
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-284-6655 | 06935 ( ADAPTER, ELECTRICAL CONDUIT ) |
REFERENCE DRAWINGS & PICTURES

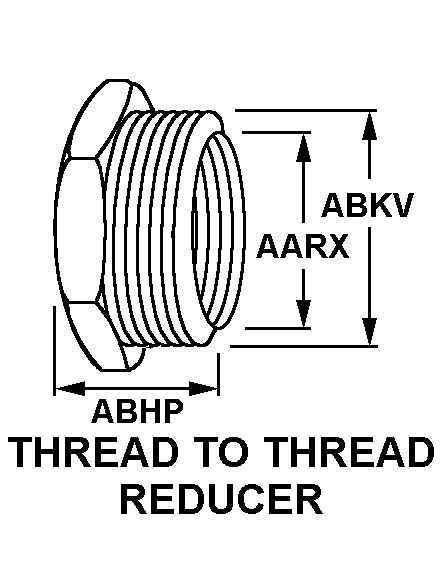

THREAD TO THREAD REDUCER
Cross Reference | NSN 5975-00-284-6655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS10177PT1410 | 81337 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| AA50553-I-1-H-4 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| A-A-50553 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| AA50553-1-1-H-4-02-S | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| WF408 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| FEDSTD156 | 06542 | FEDERAL STANDARDSPROMULGATED BY GENERAL SERVICES |
| 1256507 | 04664 | PIERCE MANUFACTURING, INC. |
| 1632 | 28488 | RACO, A DIVISION OF HUBBELLINCORPORATED(DELAWARE) |
| 710098-031 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 10105399 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5975-00-284-6655
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREAD TO THREAD REDUCER |
| OVERALL LENGTH | 0.874 INCHES NOMINAL |
| MATERIAL | 0$DSTA000 |
| SURFACE TREATMENT | 0$DZNA000 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | RAINTIGHT-NEMA TYPE 3R |
| NONDEFINITIVE SPEC/STD DATA | H KIND AND 3 TO 4 TO 1 TO 2 IN. SIZE AND 4 STYLE AND I TYPE |
| SUPPLEMENTARY FEATURES | END ITEM B-1 AIRCRAFT SUPPORT EQUIPMENT AND NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK) |
