NSN 5975-00-280-6036
Part Details | ELECTRICAL EQUIPMENT RACK
5975-00-280-6036 An open or inclosed frame structure designed to accommodate (but does not include) electrical/electronic equipment mounted on standard width panels so that the equipment may be operated after installation without being removed. It must have panel mounting rails that provide a uniform pattern of mounting holes that will accommodate various combinations of standard width panels. It may include wires, cables, terminal boards, connectors, and the like, required for equipment operation. See also MOUNTING BASE, ELECTRICAL EQUIPMENT; CABINET, ELECTRICAL EQUIPMENT; and CASE (2) (as modified). Excludes MAIN DISTRIBUTING FRAME, TELEPHONE and INTERMEDIATE DISTRIBUTING FRAME, TELEPHONE.
Alternate Parts: SCD68858, 5975-00-280-6036, 00-280-6036, 5975002806036, 002806036
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-6036 | 06353 ( RACK, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

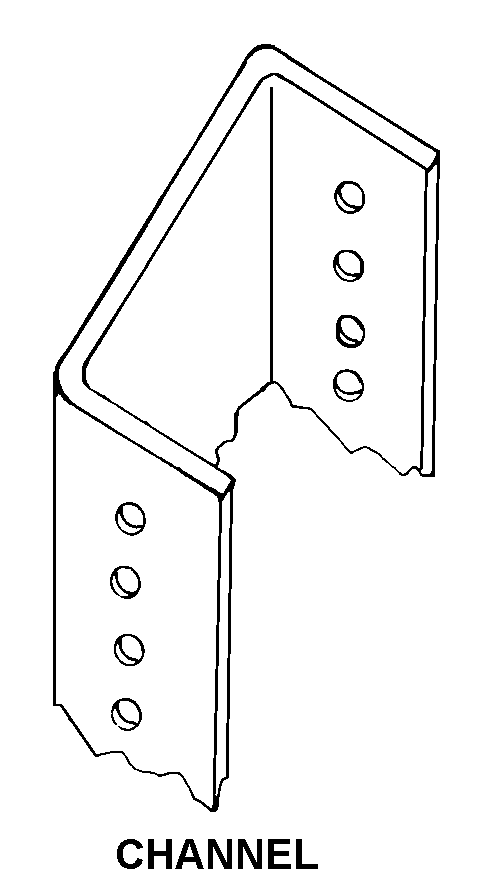

CHANNEL
OPEN FRAME VERTICAL FRONT
Cross Reference | NSN 5975-00-280-6036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCD68858 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-280-6036
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN FRAME VERTICAL FRONT |
| OVERALL HEIGHT | 26.188 INCHES NOMINAL |
| OVERALL WIDTH | 10.850 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| COLOR | OLIVE DRAB |
| MOUNTING PROVISION | UNTHREADED HOLE |
| PANEL MOUNTING RAIL DESIGN STYLE | CHANNEL |
| ENVIRONMENTAL PROTECTION | NOT RATED |
