NSN 5975-00-280-2493
Part Details | ELECTRICAL EQUIPMENT CABINET
5975-00-280-2493 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Alternate Parts: CY4516BS, CY-4516B/S, 5975-00-280-2493, 00-280-2493, 5975002802493, 002802493
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 12, 1973 | 00-280-2493 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

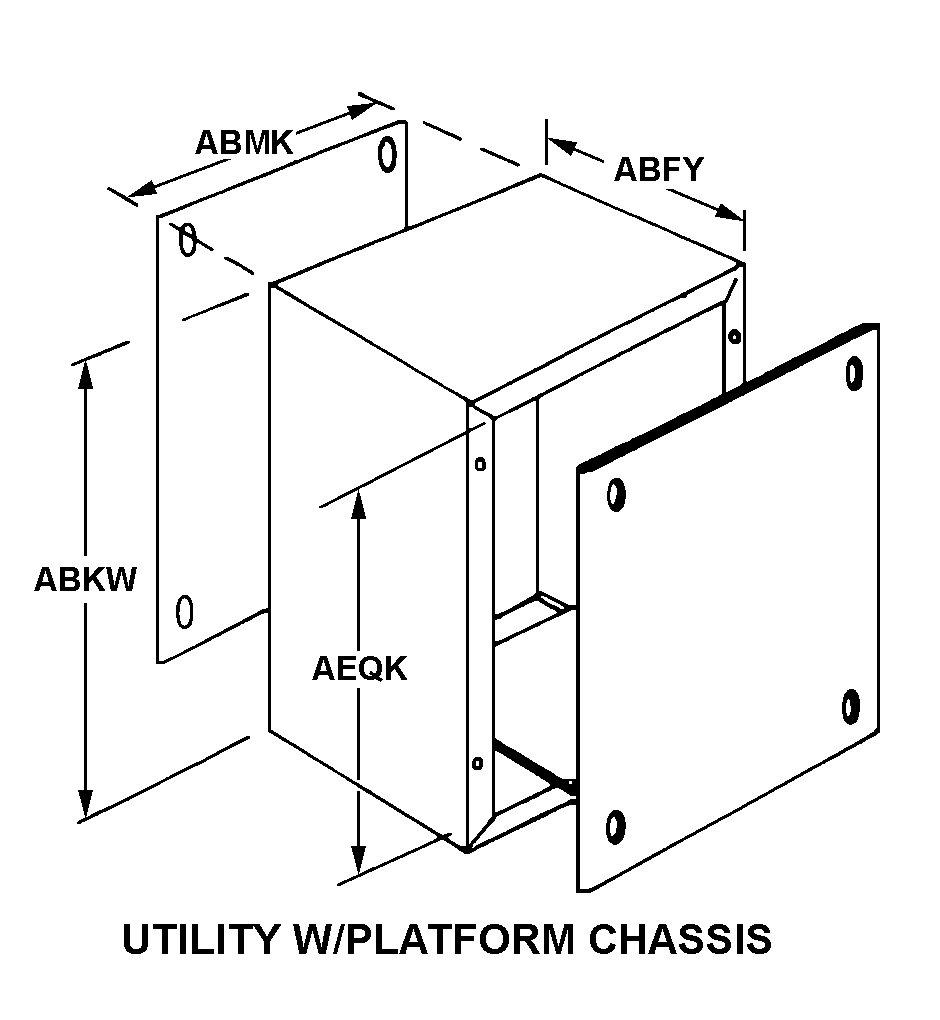

UTILITY W/PLATFORM CHASSIS
Cross Reference | NSN 5975-00-280-2493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CY-4516B/S | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
Technical Data | NSN 5975-00-280-2493
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UTILITY W/PLATFORM CHASSIS |
| OVERALL DEPTH | 22.890 INCHES NOMINAL |
| OVERALL HEIGHT | 75.000 INCHES NOMINAL |
| OVERALL WIDTH | 26.370 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| FEATURES PROVIDED | ADD-ON CAPABILITY |
| SPECIAL FEATURES | BLOWER ASSY CONSISTS OF 4 BLOWERS,115VAC,60 HZ,SINGLE PHASE,1.3 AMPS EACH,P/N FC156CA-0A9 |
