NSN 5975-00-255-2097
Part Details | STUFFING TUBE ADAPTER
5975-00-255-2097 A threaded or unthreaded item designed to mate with the mounting threads or mounting surfaces of a STUFFING TUBE, and to mount the STUFFING TUBE to a continuous structure (bulkhead or deck). The adapter may be recessed on the face to accommodate a gasket and/or washer.
Alternate Parts: MILS19622, MIL-S-19622, M196229006, M19622-9-006, MS169229006, MS16922-9-006, 5975-00-255-2097, 00-255-2097, 5975002552097, 002552097
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 20, 1973 | 00-255-2097 | 05826 ( ADAPTER, STUFFING TUBE ) |
REFERENCE DRAWINGS & PICTURES

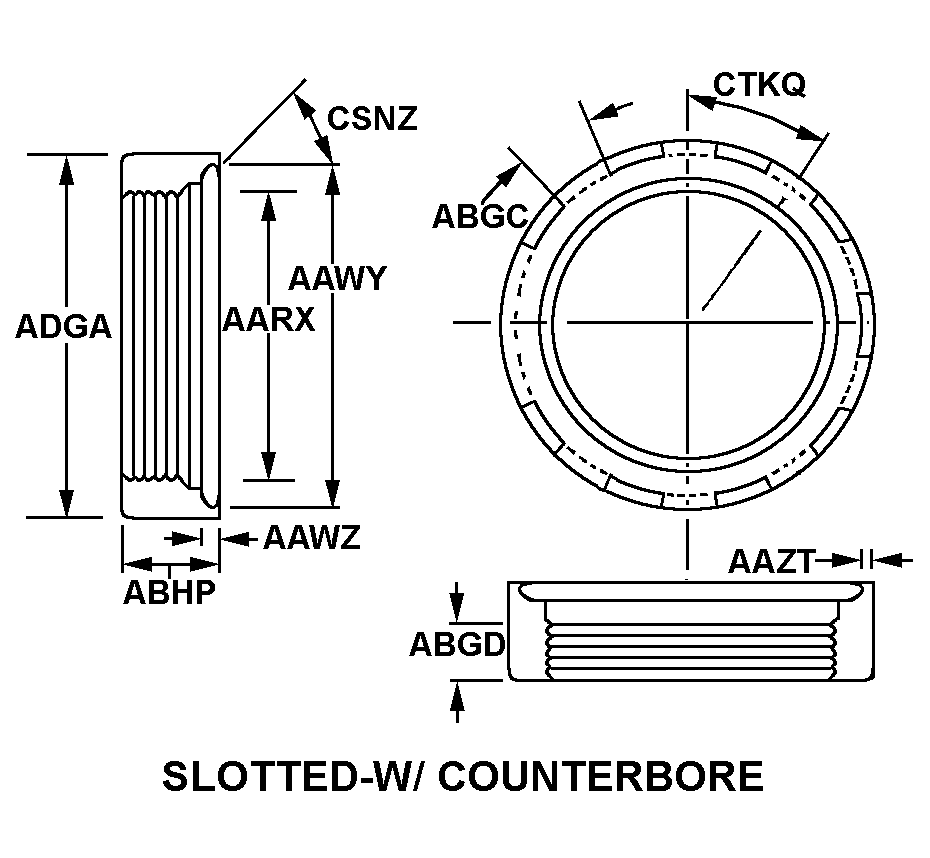

SLOTTED-W/COUNTERBORE
Cross Reference | NSN 5975-00-255-2097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-S-19622 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| M19622-9-006 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS16922-9-006 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5975-00-255-2097
| Characteristic | Specifications |
|---|---|
| SIZE | 1.187 INCHES NOMINAL |
| STYLE DESIGNATOR | SLOTTED-W/COUNTERBORE |
| INSIDE DIAMETER | 2.031 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.099 INCHES NOMINAL |
| SLOT DEPTH | 0.125 INCHES NOMINAL |
| SLOT WIDTH | 0.375 INCHES NOMINAL |
| SLOT LENGTH | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 0.639 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| OUTSIDE RECESS WIDTH | 0.140 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 36.0 DEGREES NOMINAL |
| SLOT ANGLE | 36.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.375 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
