NSN 5975-00-240-9733
Part Details | NONMETALLIC RACEWAY
5975-00-240-9733
Alternate Parts: 8905180558, 890518-0558, 4SE004603, 4SE00460-3, C15LG6, C1-5LG6, C1.5LG6, 5975-00-240-9733, 00-240-9733, 5975002409733, 002409733
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 05, 1969 | 00-240-9733 | 37527 ( RACEWAY, NONMETALLIC ) |

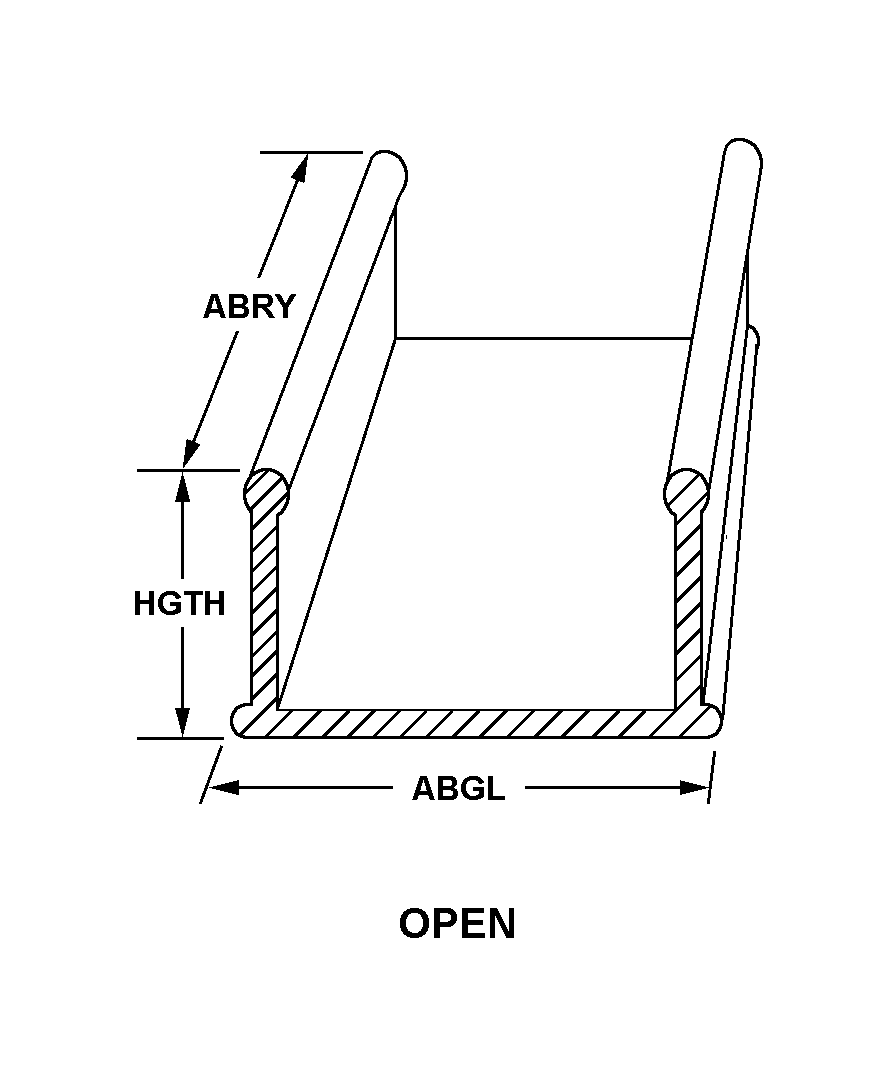

REFERENCE DRAWINGS & PICTURES
OPEN
Cross Reference | NSN 5975-00-240-9733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 890518-0558 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATIONSYSTEMS DIVISION |
| 4SE00460-3 | 28638 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 1.3.1 BLDG 562-1 |
| C1-5LG6 | 06383 | PANDUIT CORP.DBA PANDUIT |
| C1.5LG6 | 06383 | PANDUIT CORP.DBA PANDUIT |
Technical Data | NSN 5975-00-240-9733
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN |
| WIDTH | 1.89 INCHES NOMINAL |
| LENGTH | 71.82 INCHES MINIMUM AND 72.18 INCHES MAXIMUM |
| HEIGHT | 0.31 INCHES MINIMUM AND 0.39 INCHES MAXIMUM |
| SPECIAL FEATURES | CE COMPLIANT,CSA CERTIFIED,UL RECOGNIZED,FLAMMABILITY RATING UL94 V-0,UL RECOGNIZED CONTINUOUS USE TEMP 122 DEG F;MOUNTING METHOD IS SNAP-ON AND ITEM IS LEAD-FREE PVC |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COVER,DUCT;COVER,WIREWAY |
