NSN 5975-00-228-5662
Part Details | DUST AND MOISTURE SEAL BOOT
5975-00-228-5662 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: 614A625P21, 13222E9898, 13222E9898, 13222E9898, 614A625P21, 614A625P21, 13222E9898, 5975-00-228-5662, 00-228-5662, 5975002285662, 002285662
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 11, 1973 | 00-228-5662 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
REFERENCE DRAWINGS & PICTURES

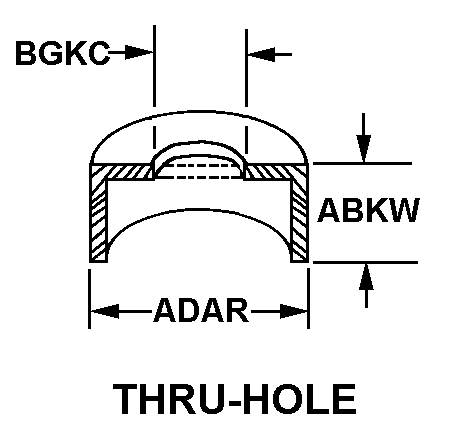

THRU-HOLE
Cross Reference | NSN 5975-00-228-5662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 614A625P21 | 97403 | CECOM LR CENTER |
| 13222E9898 | 97403 | CECOM LR CENTER |
| 13222E9898 | 5RQL2 | DRS ENVIRONMENTAL SYSTEMS, INC.DBA D R S |
| 13222E9898 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
| 614A625P21 | 1SYQ5 | ESSIBUY.COM INC. |
| 614A625P21 | 01002 | GENERAL ELECTRIC COCAPACITORS DIV |
| 13222E9898 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
Technical Data | NSN 5975-00-228-5662
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THRU-HOLE |
| OVERALL HEIGHT | 1.060 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.438 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.406 INCHES NOMINAL |
