NSN 5975-00-221-0572
Part Details | BLANK PANEL
5975-00-221-0572 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: SCC261643, SCC26164-3, 5975-00-221-0572, 00-221-0572, 5975002210572, 002210572
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-221-0572 | 15195 ( PANEL, BLANK ) |

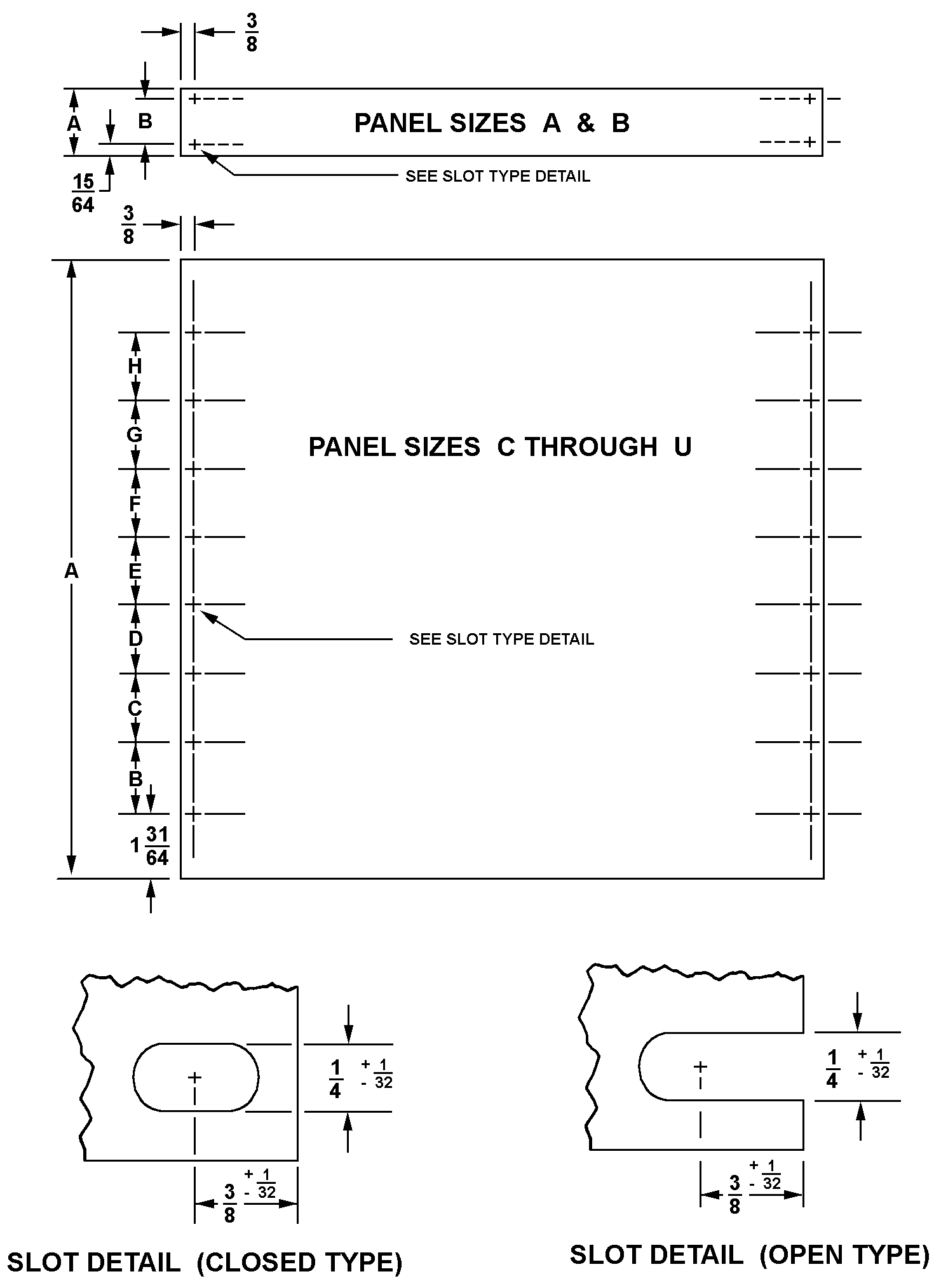

REFERENCE DRAWINGS & PICTURES
CLOSED SLOT
BLANK, PLAIN DESIGN
Cross Reference | NSN 5975-00-221-0572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCC26164-3 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-221-0572
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, PLAIN DESIGN |
| OVERALL HEIGHT | 10.406 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GRAY |
| STANDARD MOUNTING PATTERN DESIGNATOR | CLOSED SLOT |
