NSN 5975-00-207-9695
Part Details | INTERIOR CABLE RACK
5975-00-207-9695 An open frame structure primarily designed to support electrical cables in buildings and shelters. Its purpose is to provide, by itself or by joining to similar structures, a path or runway for cable which may connect two or more pieces of electrical equipment. It does not include items designed to hold a single cable. See also RACK, CABLE, UNDERGROUND; and HANGER, CABLE.
Alternate Parts: 6785042, 678504-2, 6785040002, 678504-0002, 5975-00-207-9695, 00-207-9695, 5975002079695, 002079695
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 13, 1973 | 00-207-9695 | 08082 ( RACK, CABLE, INTERIOR ) |

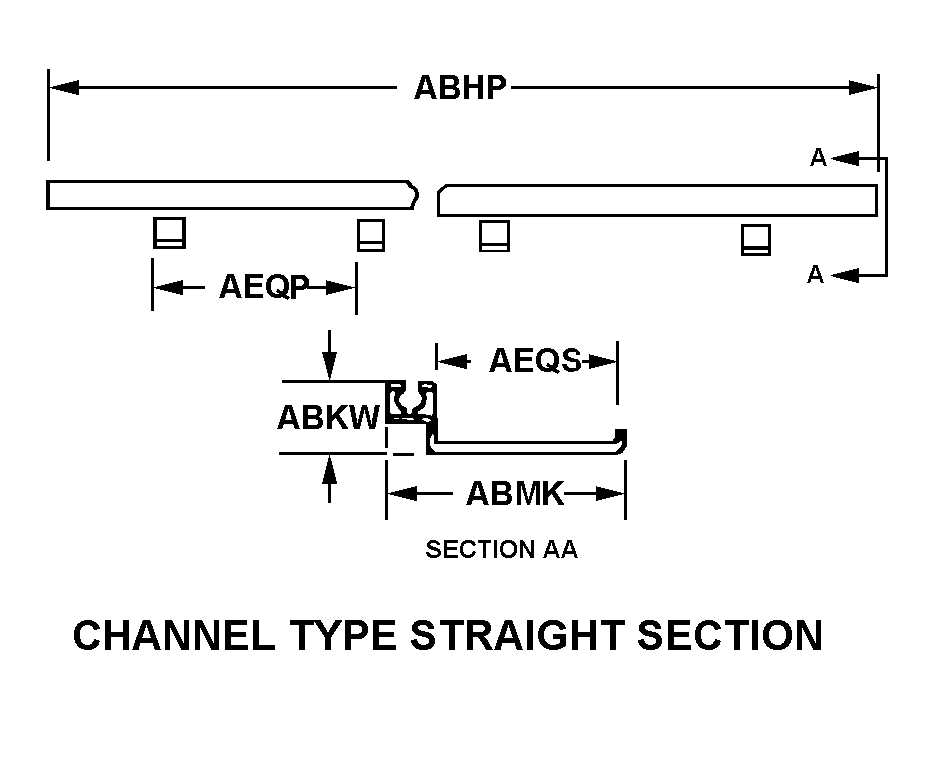

REFERENCE DRAWINGS & PICTURES
CHANNEL TYPE STRAIGHT SECTION
Cross Reference | NSN 5975-00-207-9695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 678504-2 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
| 678504-0002 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NAVIGATION AND MARITIME SYSTEMS |
Technical Data | NSN 5975-00-207-9695
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CHANNEL TYPE STRAIGHT SECTION |
| OVERALL LENGTH | 6.600 INCHES NOMINAL |
| OVERALL HEIGHT | 0.385 INCHES NOMINAL |
| OVERALL WIDTH | 0.418 INCHES NOMINAL |
| CROSS-MEMBER SPACING | 3.300 INCHES NOMINAL |
| CLEARANCE WIDTH | 0.295 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | CHROMATE |
| COLOR | ALUMINUM |
| MOUNTING PROVISION | UNTHREADED HOLE |
