NSN 5975-00-187-5305
Part Details | GROUND ROD
5975-00-187-5305 An item designed to be driven into the earth for the purpose of establishing electrical contact. One end is pointed or tapered to facilitate entrance into the earth. See also ROD SECTION, GROUND.
Alternate Parts: RLC170, GP3, 5975-00-187-5305, 00-187-5305, 5975001875305, 001875305
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-187-5305 | 00247 ( ROD, GROUND ) |
REFERENCE DRAWINGS & PICTURES

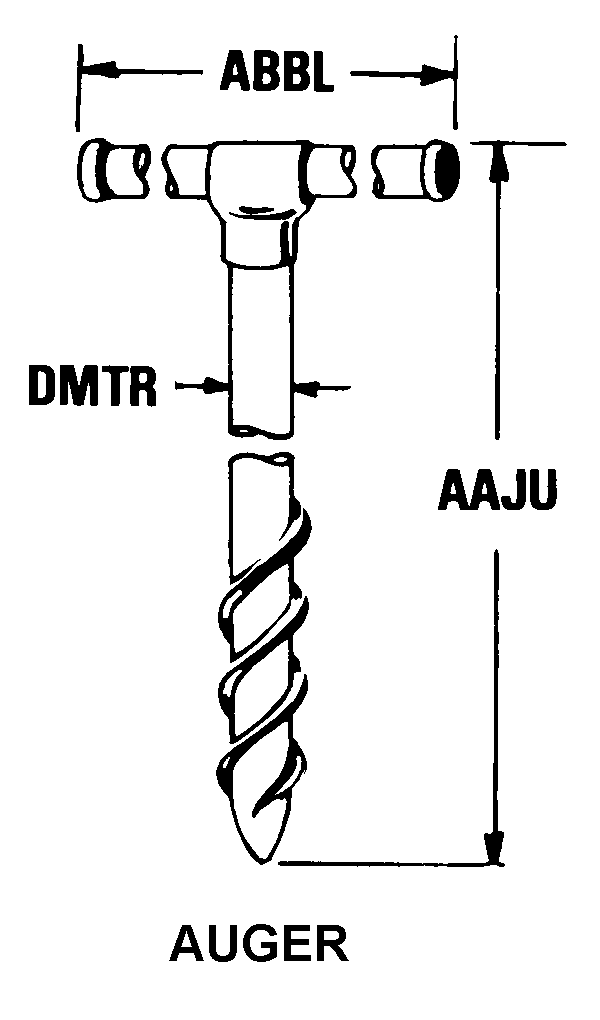

AUGER
Cross Reference | NSN 5975-00-187-5305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RLC170 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| GP3 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5975-00-187-5305
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AUGER |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| OVERALL LENGTH | 30.000 INCHES |
| HANDLE LENGTH | 5.000 INCHES |
| DIAMETER | 1.000 INCHES |
| GROUND WIRE ACCOMMODATION | INTEGRAL BOLT AND NUT |
| ACCOMMODATED CONDUCTOR WIRE CONSTRUCTION | SOLID AND STRANDED |
| SECTION QUANTITY | 1 |
| POINT SHAPE | CHISEL |
