NSN 5975-00-178-1208
Part Details | RIGID METAL CONDUIT
5975-00-178-1208 A conduit of one-piece tubular construction, designed as thin wall type (EMT) and thick wall type. The items may be threaded and furnished with a COUPLING, ELECTRICAL CONDUIT and/or thread protection. See also CONDUIT ASSEMBLY,METAL, RIGID. Excludes conduit like items that are designed for other than electrical applications.
Alternate Parts: WWC581, WW-C-581, UL6, ANSI UL6, 5975-00-178-1208, 00-178-1208, 5975001781208, 001781208
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-178-1208 | 18707 ( CONDUIT, METAL, RIGID ) |
REFERENCE DRAWINGS & PICTURES

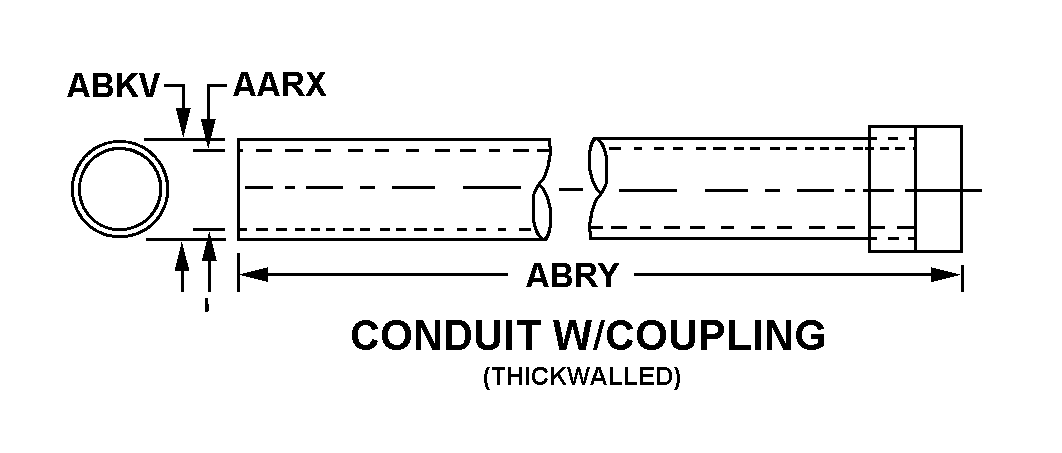

CONDUIT W/COUPLING
Cross Reference | NSN 5975-00-178-1208
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WW-C-581 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| UL6 | 81345 | UNDERWRITERS LABORATORIES INC. |
| ANSI UL6 | 81345 | UNDERWRITERS LABORATORIES INC. |
Technical Data | NSN 5975-00-178-1208
| Characteristic | Specifications |
|---|---|
| TRADE SIZE | 1.250 |
| STRUCTURAL DESIGN | THICKWALL |
| STYLE DESIGNATOR | CONDUIT W/COUPLING |
| INSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.660 INCHES NOMINAL |
| LENGTH | 120.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 1 CLASS AND 1-1 TO 4 IN. SIZE |
