NSN 5975-00-174-8121
Part Details | FANNING STRIP
5975-00-174-8121 An item made of rigid or semirigid insulating material for spacing or separating wire(s) and/or cable(s). For items having terminals, see TERMINAL BOARD; and INSULATOR (as modified).
Alternate Parts: 1681937P1, 5975-00-174-8121, 00-174-8121, 5975001748121, 001748121
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 24, 1973 | 00-174-8121 | 00408 ( FANNING STRIP ) |
REFERENCE DRAWINGS & PICTURES

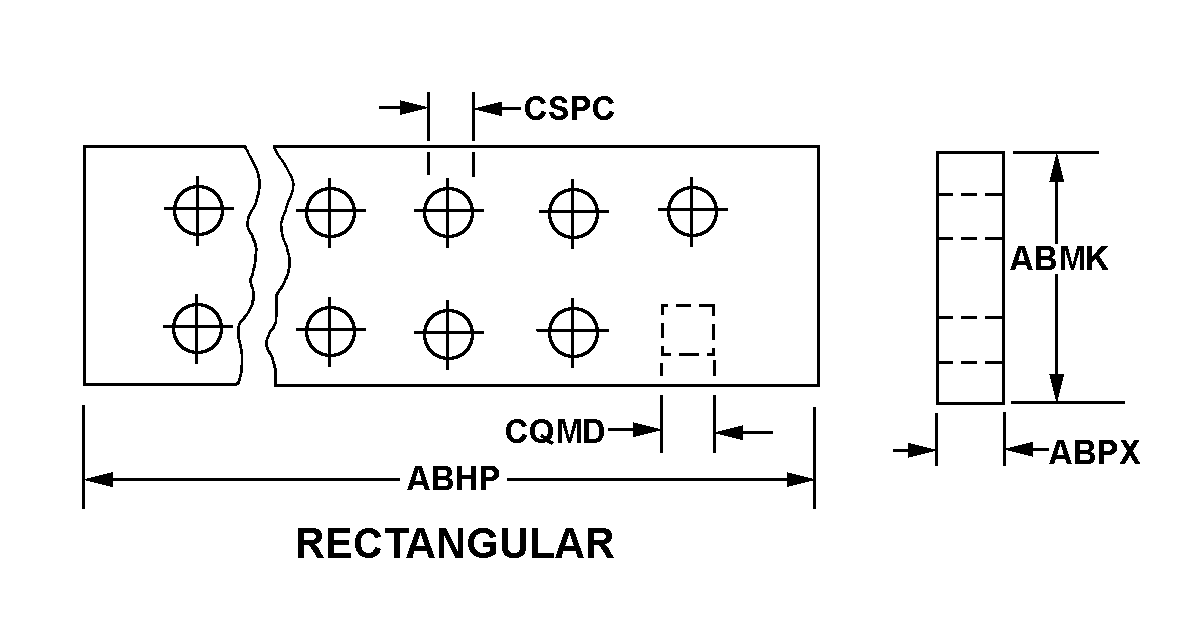

RECTANGULAR
Cross Reference | NSN 5975-00-174-8121
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1681937P1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5975-00-174-8121
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR |
| OVERALL LENGTH | 6.590 INCHES NOMINAL |
| OVERALL WIDTH | 6.350 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.250 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.880 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.626 INCHES NOMINAL |
| FLEXIBILITY | RIGID |
