NSN 5975-00-153-7969
Part Details | JUNCTION BOX EXTENSION
5975-00-153-7969 An item designed to be mounted on a JUNCTION BOX to increase the depth of the box.
Alternate Parts: 52C52 34, 52C52 3-4, 5975-00-153-7969, 00-153-7969, 5975001537969, 001537969
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 20, 1971 | 00-153-7969 | 15323 ( EXTENSION, JUNCTION BOX ) |

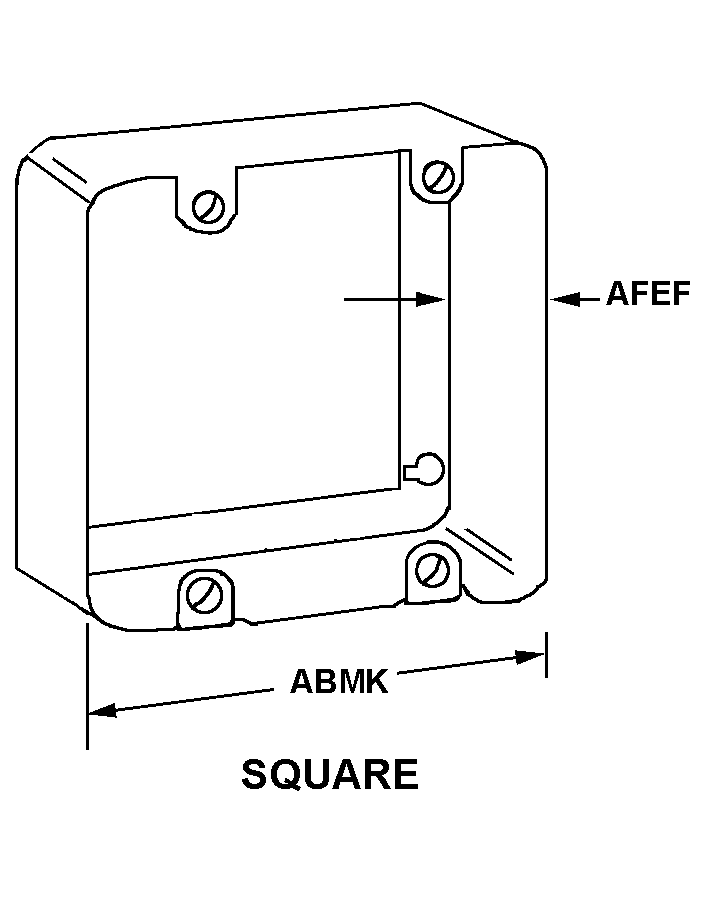

REFERENCE DRAWINGS & PICTURES
SQUARE
Cross Reference | NSN 5975-00-153-7969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52C52 3-4 | 56501 | THOMAS & BETTS CORPORATION |
Technical Data | NSN 5975-00-153-7969
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SQUARE |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| INSIDE DEPTH | 0.750 INCHES NOMINAL |
| COVER MOUNTING HOLE QUANTITY | 4 |
| STANDARD WIRING DEVICE QUANTITY | 2 |
| COVER ATTACHMENT METHOD | UNTHREADED HOLE |
| SPECIAL FEATURES | EXTENSION USED TO RAISE DEVICES3/4 IN. |
