NSN 5975-00-152-1146
Part Details | ELECTRICAL BOX CONNECTOR
5975-00-152-1146 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Alternate Parts: AA5055200I1ADSZ1.000, AA50552-00I-1-A-D-SZ1.000, AA50552, WF406, W-F-406, FEDSTD157, FED-STD-157, 5975-00-152-1146, 00-152-1146, 5975001521146, 001521146
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-152-1146 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

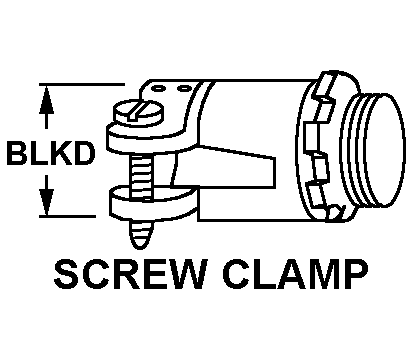

SCREW CLAMP
Cross Reference | NSN 5975-00-152-1146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA50552-00I-1-A-D-SZ1.000 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| AA50552 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| W-F-406 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| FED-STD-157 | 06542 | FEDERAL STANDARDSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 5975-00-152-1146
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SCREW CLAMP |
| MATERIAL | 0$DSTA000 |
| FURNISHED ITEMS | LOCKNUT |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND A STYLE AND I TYPE |
| SUPPLEMENTARY FEATURES | END ITEM MINUTEMAN MISSILE LGM-30 |
