NSN 5975-00-138-8688
Part Details | JUNCTION BOX COVER
5975-00-138-8688 A cover containing facilities for mounting directly on a JUNCTION BOX. It may have provisions for the insertion and/or mounting of electrical devices, such as switches, connectors, additional covers, and jewels. It may include the jewel(s). For covers having facilities for mounting on brackets or on current carrying devices such as switches and receptacle connectors, see PLATE, WALL, ELECTRICAL. See also COVER, CONDUIT OUTLET.
Alternate Parts: 2090752045, 209-075-204-5, 5975-00-138-8688, 00-138-8688, 5975001388688, 001388688
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 25, 1971 | 00-138-8688 | 13702 ( COVER, JUNCTION BOX ) |
REFERENCE DRAWINGS & PICTURES

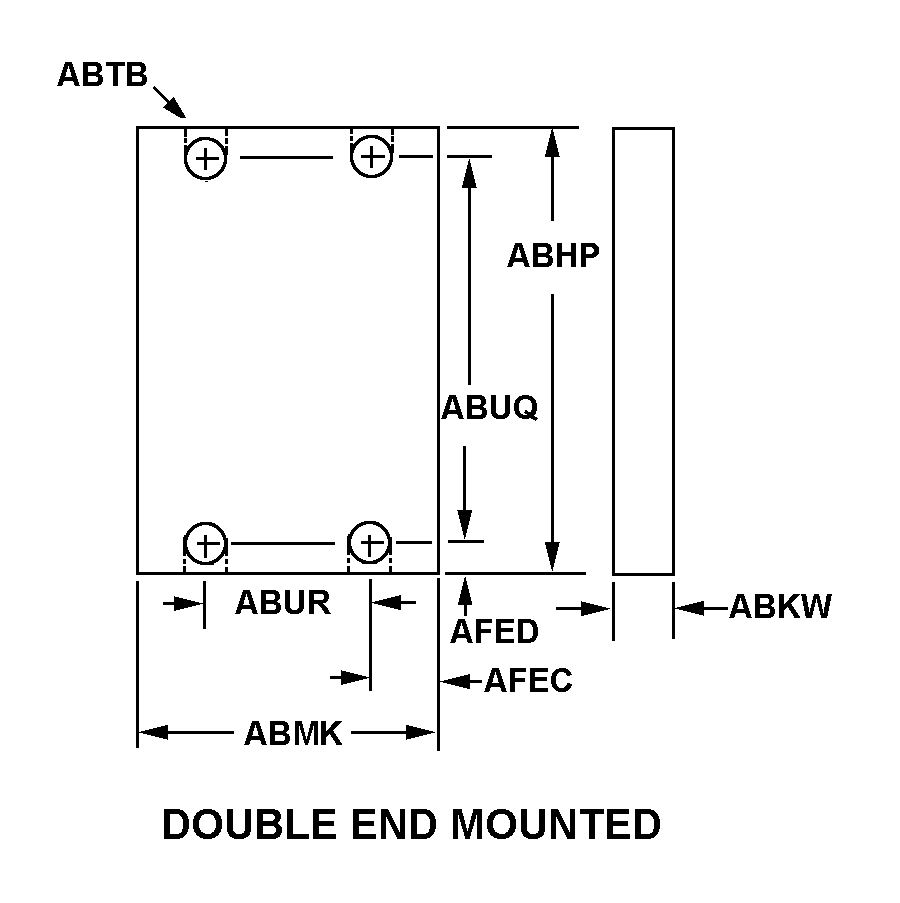

DOUBLE END MOUNTED
Cross Reference | NSN 5975-00-138-8688
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 209-075-204-5 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5975-00-138-8688
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE END MOUNTED |
| OVERALL LENGTH | 5.745 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.063 INCHES NOMINAL |
| OVERALL WIDTH | 3.370 INCHES MAXIMUM |
| FIRST CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 5.365 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 2.250 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE WIDTH | 0.555 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE LENGTH | 0.188 INCHES NOMINAL |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER TYPE | FLAT |
| COVER OPENING SHAPE AND QUANTITY | 2 OBLONG AND 13 ROUND |
| COVER ATTACHMENT METHOD | TURN-LOCK STUDS |
