NSN 5975-00-105-2332
Part Details | CONDUIT OUTLET COVER
5975-00-105-2332 An item of any material, with or without threads, designed to mate with a CONDUIT OUTLET or a SEALING FITTING, ELECTRICAL CONDUIT. It may be designed as a removable side plate cover with or without hubs. It may have provisions for draining or venting. It may be designed for the insertion and/or mounting of electrical devices, such as switches, receptacle connectors, and indicator light lenses. It may include mechanisms for the external operation of switches but does not include the wiring devices. For items designed to mount directly on a bracket or an electrical current carrying wiring device, see PLATE, WALL, ELECTRICAL. See also COVER, JUNCTION BOX.
Alternate Parts: JBKB, 5975-00-105-2332, 00-105-2332, 5975001052332, 001052332
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 10, 1968 | 00-105-2332 | 19945 ( COVER, CONDUIT OUTLET ) |
REFERENCE DRAWINGS & PICTURES

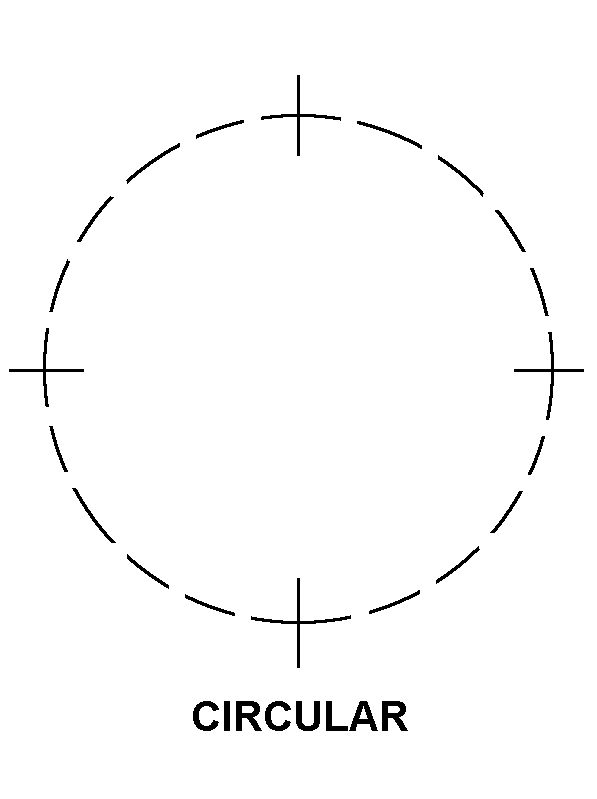

CIRCULAR
BLANK

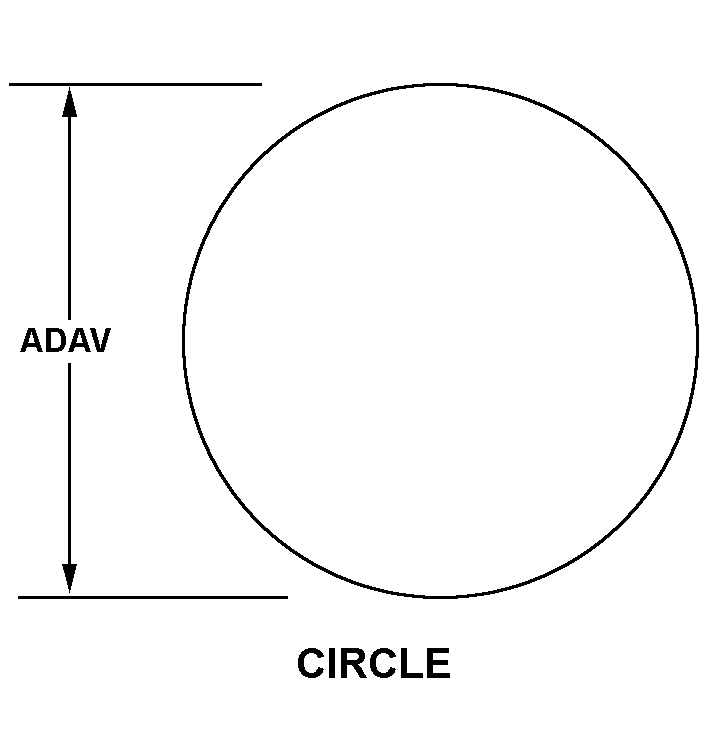

CIRCLE
Cross Reference | NSN 5975-00-105-2332
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| JBKB | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
Technical Data | NSN 5975-00-105-2332
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CIRCLE |
| OVERALL DIAMETER | 4.500 INCHES NOMINAL |
| TRADE DESIGNATION | JB F0RM 5-10 |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER MOUNTING HOLE ARRANGEMENT STYLE | CIRCULAR |
| COVER MOUNTING SURFACE TYPE | FLAT |
| COVER MOUNTING GASKET TYPE | SOLID CENTER |
| FUNCTIONAL COVER STYLE | BLANK |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | GASTIGHT |
| FURNISHED ITEMS | COVER MOUNTING SCREW |
