NSN 5970-00-117-6180
Part Details | DISK INSULATOR
5970-00-117-6180 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Alternate Parts: 937831, 5970-00-117-6180, 00-117-6180, 5970001176180, 001176180
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 04, 1968 | 00-117-6180 | 18295 ( INSULATOR, DISK ) |

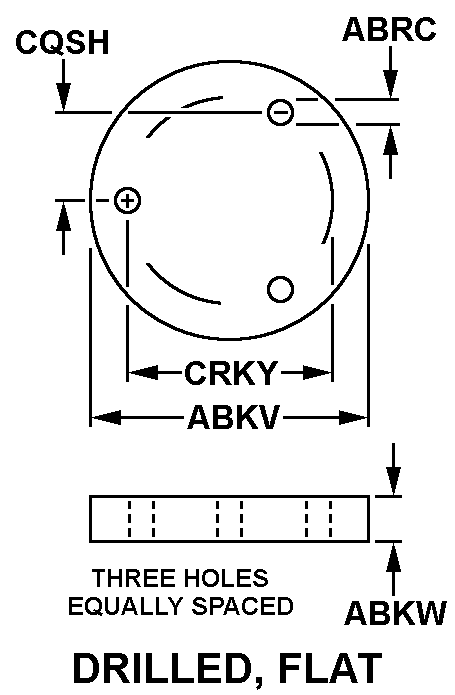

REFERENCE DRAWINGS & PICTURES
DRILLED, FLAT
Cross Reference | NSN 5970-00-117-6180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 937831 | 94580 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5970-00-117-6180
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DRILLED, FLAT |
| OUTSIDE DIAMETER | 0.220 INCHES NOMINAL |
| OVERALL HEIGHT | 0.015 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.030 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.100 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, EPOXY, MIL-P-18177, TYPE GEB |
