NSN 5970-00-103-6877
Part Details | ANGLE BRACKET INSULATOR
5970-00-103-6877 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Alternate Parts: 2231718, 2231718, 5970-00-103-6877, 00-103-6877, 5970001036877, 001036877
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 24, 1968 | 00-103-6877 | 19191 ( INSULATOR, ANGLE BRACKET ) |
REFERENCE DRAWINGS & PICTURES

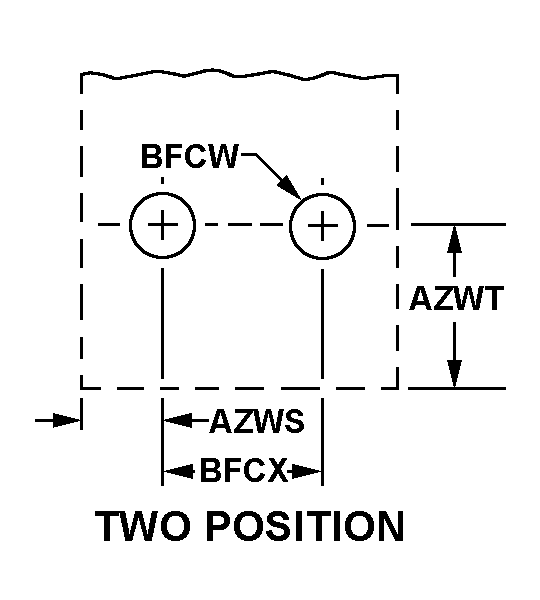

TWO POSITION

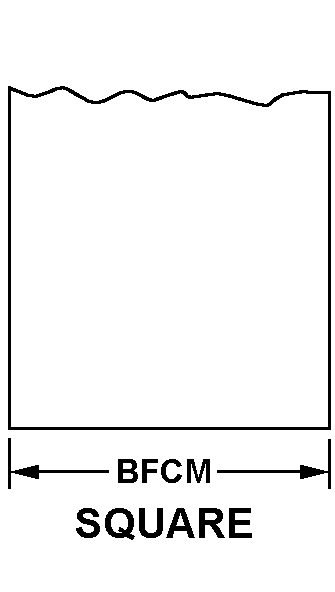

SQUARE
Cross Reference | NSN 5970-00-103-6877
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2231718 | 0AFL4 | CHAMPION AEROSPACE LLC |
| 2231718 | 94988 | COOPER INDUSTRIES INCCHAMPION AVIATION PRODUCTS |
Technical Data | NSN 5970-00-103-6877
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS AND RESIN SILICONE |
| FIRST LEG LENGTH | 1.000 INCHES NOMINAL |
| SECOND LEG LENGTH | 0.750 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.125 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.125 INCHES NOMINAL |
| ANGLE | 90.0 DEGREES |
| LEG STYLE DESIGNATOR | SQUARE |
| LEG WIDTH | 1.000 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | TWO POSITION |
| HORIZONTAL DISTANCE FROM EDGE TO HOLE CENTER | 0.156 INCHES NOMINAL |
| VERTICAL DISTANCE FROM EDGE TO HOLE CENTER | 0.312 INCHES NOMINAL |
| HOLE DIAMETER/SIZE | 0.096 INCHES MINIMUM AND 0.101 INCHES MAXIMUM |
| HORIZONTAL DISTANCE BETWEEN HOLE CENTERS | 0.688 INCHES NOMINAL |
| REINFORCEMENT FEATURE | NOT PROVIDED |
