NSN 5970-00-086-1370
Part Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-00-086-1370 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Alternate Parts: 562A0675, 562A067-5, 5970-00-086-1370, 00-086-1370, 5970000861370, 000861370
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-086-1370 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |

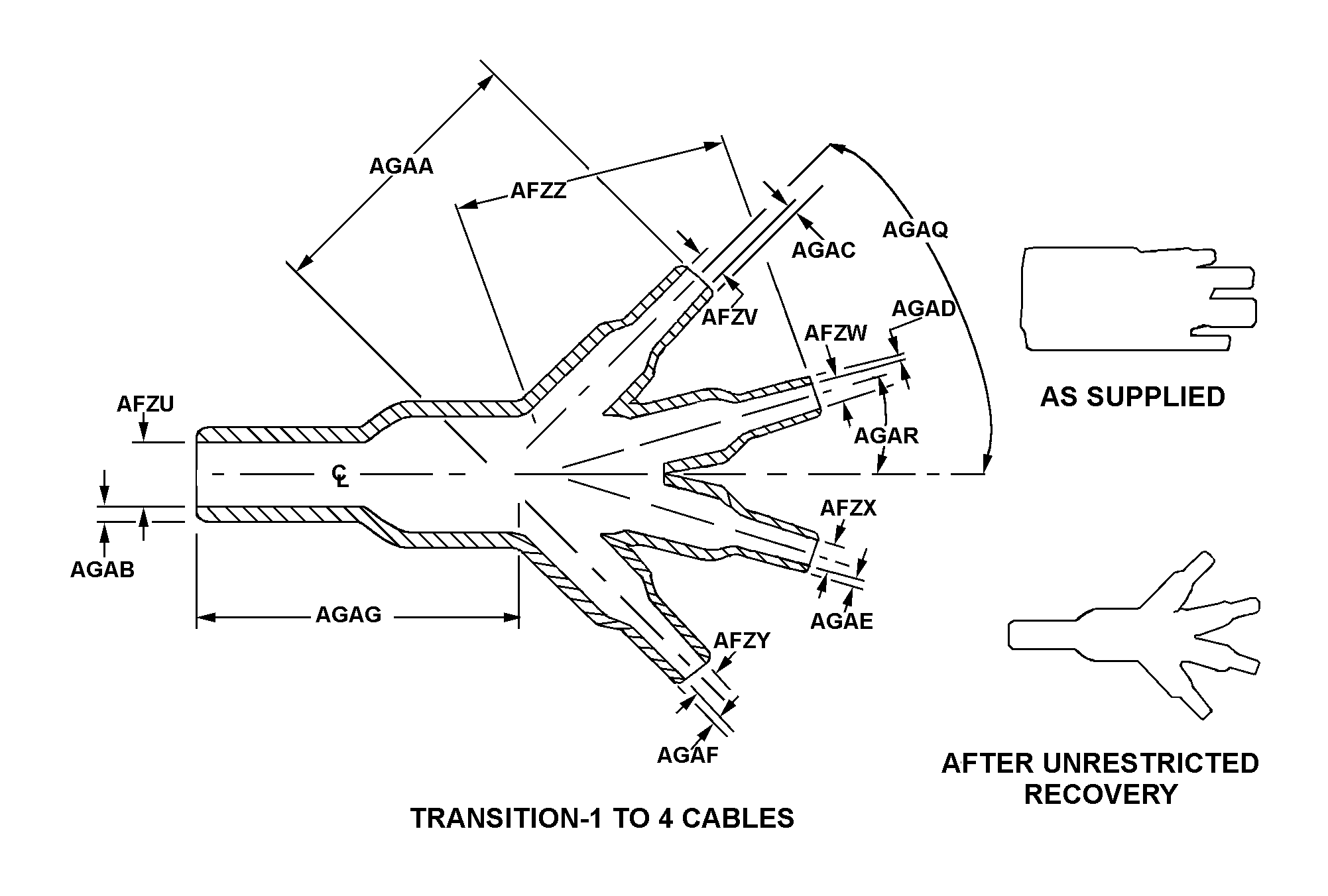

REFERENCE DRAWINGS & PICTURES
TRANSITION-1 TO 4 CABLES
Cross Reference | NSN 5970-00-086-1370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 562A067-5 | 06090 | TE CONNECTIVITY CORPORATIONDBA RAYCHEM PRODUCT DIVISION |
Technical Data | NSN 5970-00-086-1370
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TRANSITION-1 TO 4 CABLES |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | -55.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
