NSN 5970-00-052-4320
Part Details | STRAIN INSULATOR
5970-00-052-4320 An insulator specifically designed to transmit to the tower, or other support, the entire pull of a conductor or guy wire.
Alternate Parts: 729BB, 5970-00-052-4320, 00-052-4320, 5970000524320, 000524320
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-052-4320 | 00226 ( INSULATOR, STRAIN ) |
REFERENCE DRAWINGS & PICTURES

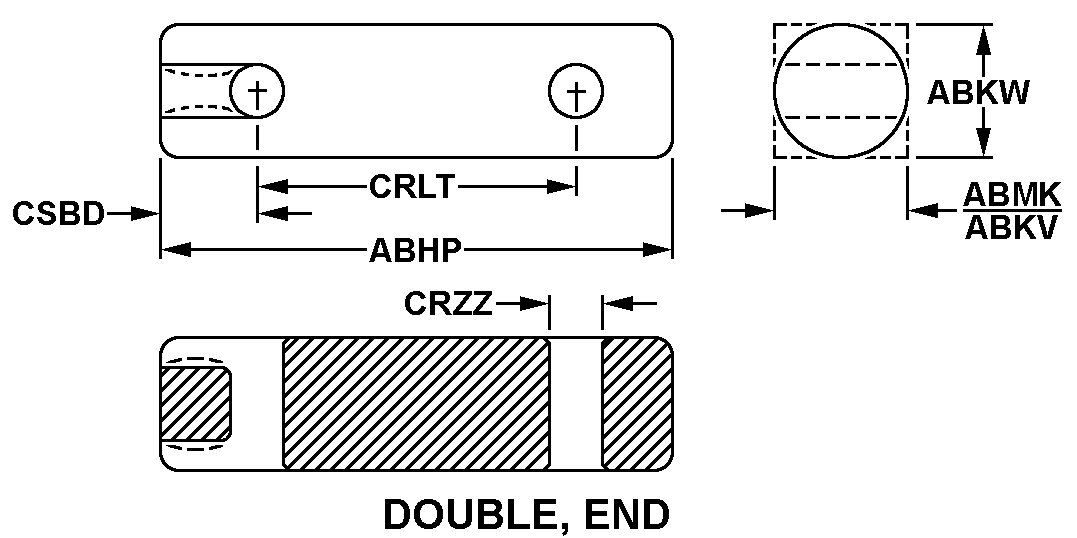

DOUBLE, END
Cross Reference | NSN 5970-00-052-4320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 729BB | 81143 | ISOLANTITE MANUFACTURING COMPANY INC |
Technical Data | NSN 5970-00-052-4320
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | OVERALL CERAMIC |
| STYLE DESIGNATOR | DOUBLE, END |
| OVERALL LENGTH | 7.050 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| CONDUCTOR SEPARATION DISTANCE | 5.250 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.375 INCHES NOMINAL |
| FIRST DISTANCE FROM CONDUCTOR HOLE TO INSULATOR END | 1.675 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
