NSN 5965-00-280-3602
Part Details | CARBON MICROPHONE
5965-00-280-3602 A microphone which depends for its operation upon the variation in resistance of carbon granules.
Alternate Parts: M48U, M-48/U, 10013, 5965-00-280-3602, 00-280-3602, 5965002803602, 002803602
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-280-3602 | 00359 ( MICROPHONE, CARBON ) |
REFERENCE DRAWINGS & PICTURES

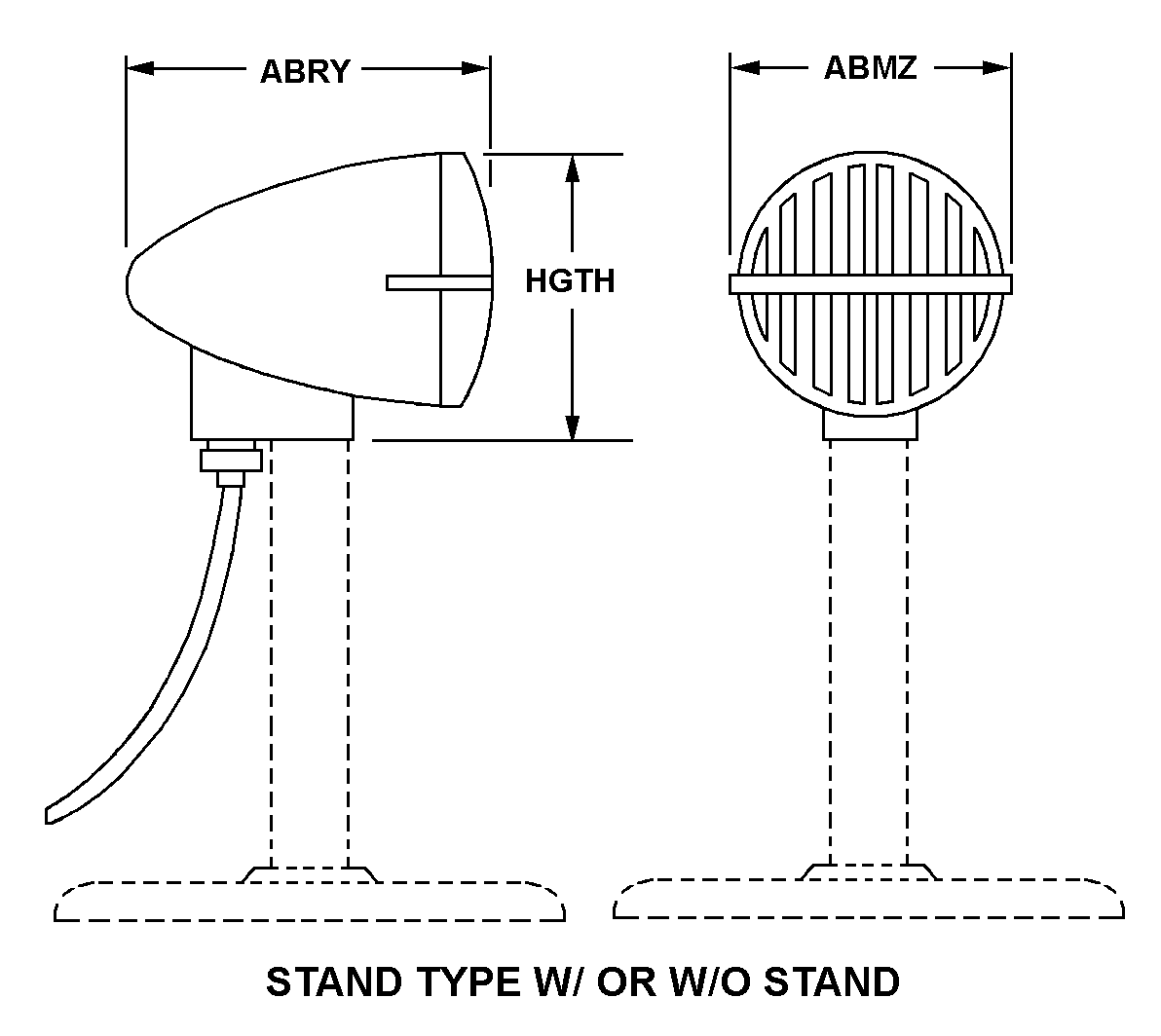

STAND TYPE W/ OR W/O STAND
Cross Reference | NSN 5965-00-280-3602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M-48/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| 10013 | 82872 | ROANWELL CORPORATIONDBA ROANWELL |
Technical Data | NSN 5965-00-280-3602
| Characteristic | Specifications |
|---|---|
| DC RESISTANCE RATING IN OHMS | 45.0 NOMINAL |
| FREQUENCY RESPONSE RANGE IN HERTZ | P300.0/P4000.0 |
| OUTPUT SENSITIVITY RATING IN DECIBELS | M3.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 1 MILLIWATT PER MICROBAR |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | NOT INCLUDED |
| SUPPORT STAND | INCLUDED |
| SUPPORT STAND HEIGHT | 8.0 INCHES NOMINAL |
| SHOCK MOUNT | NOT PROVIDED |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| EXTENDED CABLE LENGTH | 6.0 FEET NOMINAL |
| SWITCH TYPE | PUSH |
| BODY STYLE | STAND TYPE W/ OR W/O STAND |
| DIAMETER | 2.688 INCHES NOMINAL |
