NSN 5961-00-016-4941
Part Details | SEMICONDUCTOR DEVICE RETAINER
5961-00-016-4941 An item primarily designed to position and/or restrain the movement of one or more semiconductor devices in their normal operating position. Excludes CLIP (1), ELECTRICAL; CLAMP (1), LOOP; HOLDER, SEMICONDUCTOR DEVICE; HOLDER (1), CRYSTAL UNIT; RETAINER, CRYSTAL HOLDER; and STRAP, RETAINING. See also HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT and SOCKET, PLUG-IN ELECTRONIC COMPONENTS.
Alternate Parts: 3B5815, 3B581-5, 7208971PT1, 7208971P001, 5961-00-016-4941, 00-016-4941, 5961000164941, 000164941
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 29, 1967 | 00-016-4941 | 37244 ( RETAINER, SEMICONDUCTOR DEVICE ) |
REFERENCE DRAWINGS & PICTURES

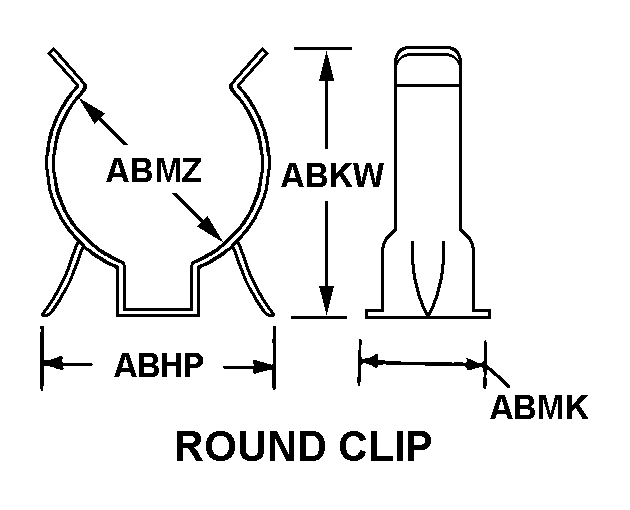

ROUND CLIP
Cross Reference | NSN 5961-00-016-4941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3B581-5 | 07387 | BIRTCHER CORP |
| 7208971PT1 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
| 7208971P001 | 03538 | LOCKHEED MARTIN CORPORATIONDIV RMS |
Technical Data | NSN 5961-00-016-4941
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | U000 ANY ACCEPTABLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | ROUND CLIP |
| OVERALL LENGTH | 0.344 INCHES NOMINAL |
| OVERALL HEIGHT | 0.406 INCHES NOMINAL |
| OVERALL WIDTH | 0.343 INCHES NOMINAL |
| DIAMETER | 0.332 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
| PRECIOUS MATERIAL | GOLD |
