NSN 5960-00-067-8904
Part Details | ELECTRON TUBE SHIELD
5960-00-067-8904 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: T3421NT, T3-421NT, 21636901, 2163690-1, 21636901, 2163690-1, 5960-00-067-8904, 00-067-8904, 5960000678904, 000678904
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 13, 1967 | 00-067-8904 | 10195 ( SHIELD, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

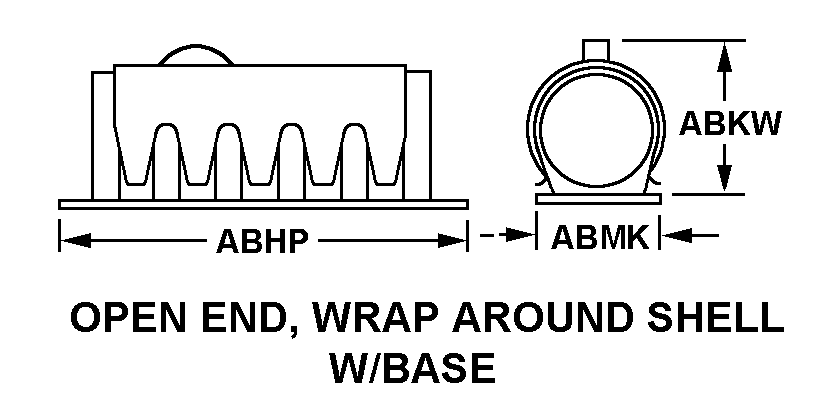

OPEN END, WRAP AROUND SHELL W/BASE
Cross Reference | NSN 5960-00-067-8904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T3-421NT | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 2163690-1 | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 2163690-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5960-00-067-8904
| Characteristic | Specifications |
|---|---|
| MATERIAL | G000 ANY ACCEPTABLE AND COPPER ALLOY |
| SURFACE TREATMENT | G000 ANY ACCEPTABLE |
| STYLE DESIGNATOR | OPEN END, WRAP AROUND SHELL W/BASE |
| OVERALL LENGTH | 1.312 INCHES NOMINAL |
| OVERALL HEIGHT | 0.450 INCHES NOMINAL |
| OVERALL WIDTH | 0.490 INCHES NOMINAL |
| TUBE ACCOMMODATED MAXIMUM HEIGHT | 0.875 INCHES |
| TUBE ENVELOPE ACCOMMODATED MAXIMUM DIAMETER | 0.375 INCHES |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | BASE AND HOLDER EXTERNAL SURFACES SILVER |
