NSN 5960-00-020-5196
Part Details | ELECTRON TUBE RETAINER
5960-00-020-5196 An item specifically designed to restrain the movement of an electron tube when the latter is mounted in another item, normally a tube socket. Includes clamps, clips, and similar restraining devices specifically designed for this function.
Alternate Parts: 816861, 81686-1, 816861, 81686-1, 5960-00-020-5196, 00-020-5196, 5960000205196, 000205196
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 25, 1967 | 00-020-5196 | 16182 ( RETAINER, ELECTRON TUBE ) |
REFERENCE DRAWINGS & PICTURES

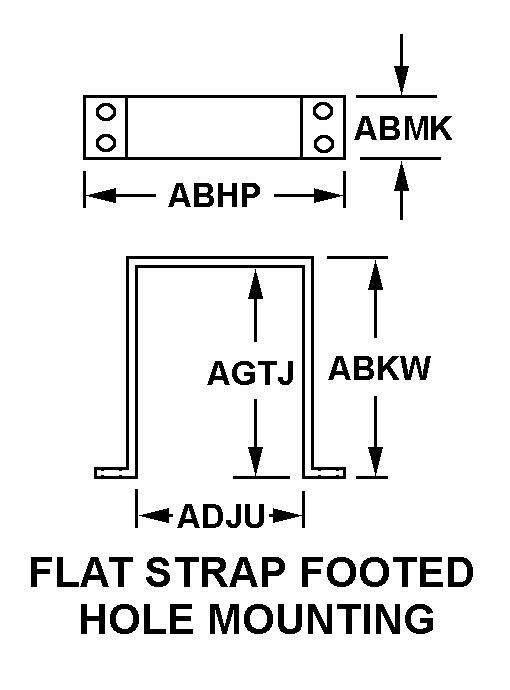

FLAT STRAP FOOTED HOLE MOUNTING
Cross Reference | NSN 5960-00-020-5196
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81686-1 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV ES DEFENSIVE SYSTEMS DIVISION |
| 81686-1 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MULTIPLE |
Technical Data | NSN 5960-00-020-5196
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 AND STEEL COMP 303 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-327 FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | FLAT STRAP FOOTED HOLE MOUNTING |
| OVERALL LENGTH | 4.560 INCHES NOMINAL |
| OVERALL WIDTH | 0.620 INCHES NOMINAL |
| SPECIAL FEATURES | MOUNTING ACCOMPLISHED BY INSERTION OF 0.250 IN. DIA X 0.620 IN. LG ROD WITH THREADED HOLE INTO SLOT |
