NSN 5945-00-028-4312
Part Details | ELECTRICAL SOLENOID
5945-00-028-4312 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 8211032, 821-103-2, 5945-00-028-4312, 00-028-4312, 5945000284312, 000284312
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 17, 1972 | 00-028-4312 | 00310 ( SOLENOID, ELECTRICAL ) |

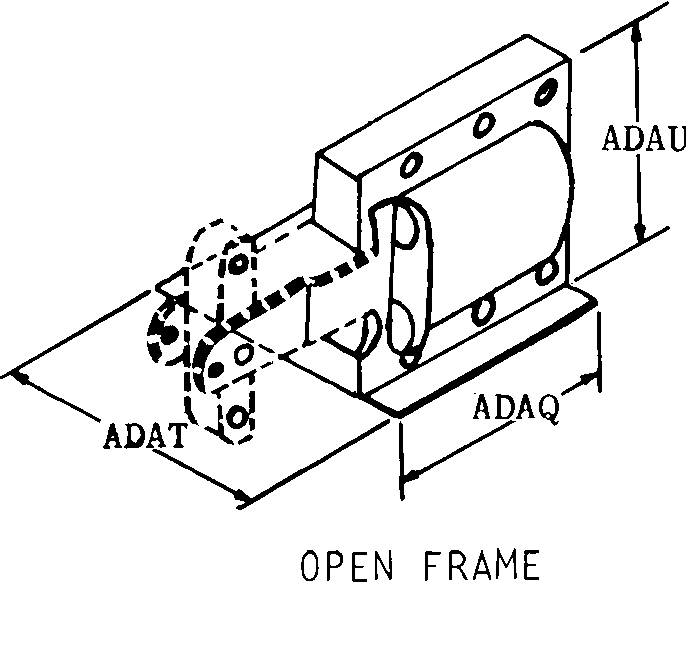

REFERENCE DRAWINGS & PICTURES
OPEN FRAME
Cross Reference | NSN 5945-00-028-4312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 821-103-2 | 81997 | EATON CORPCONTROLS DIV |
Technical Data | NSN 5945-00-028-4312
| Characteristic | Specifications |
|---|---|
| BODY STYLE | OPEN FRAME |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PULL AND PUSH |
| POWER TAKEOFF CONNECTION TYPE | SLOTTED-DRILLED |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SLOT |
| TERMINAL LOCATION | ONE SIDE |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| INCLOSURE TYPE | PARTIALLY INCLOSED, SHELL |
| BODY LENGTH | 2.500 INCHES NOMINAL |
| BODY WIDTH | 1.812 INCHES NOMINAL |
| BODY HEIGHT | 2.083 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 240.0 AC MAXIMUM |
| LINEAR FORCE DELIVERED | 8.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 1.062 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.375 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.208 INCHES NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
