NSN 5945-00-027-0455
Part Details | ELECTRICAL SOLENOID
5945-00-027-0455 An item consisting of one or more coils surrounding an iron core. The coil(s) and the core are moveable in relation to each other. The axial or rotary movement is a result of the magnetic flux of the coil. It is designed to convert electrical energy into mechanical energy. It does not include switch contacts. See also RELAY, ELECTROMAGNETIC, and ELECTROMAGNETIC ACTUATOR.
Alternate Parts: 5057, 5945-00-027-0455, 00-027-0455, 5945000270455, 000270455
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-027-0455 | 00310 ( SOLENOID, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

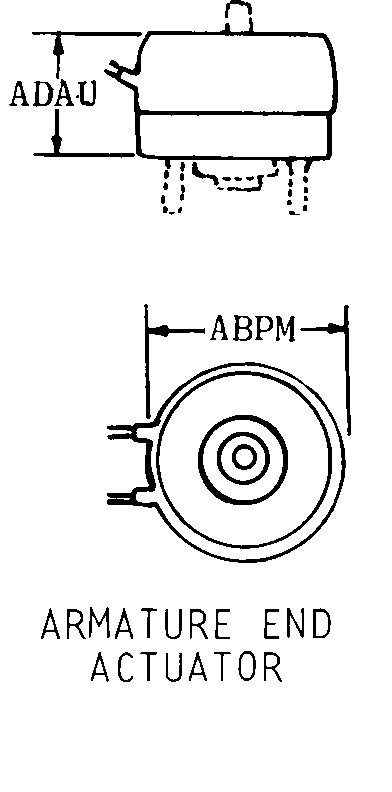

ARMATURE END ACTUATOR
Cross Reference | NSN 5945-00-027-0455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5057 | 07797 | ROCKER SOLENOID COMPANYDBA ROCKER INDUSTRIES |
Technical Data | NSN 5945-00-027-0455
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ARMATURE END ACTUATOR |
| MAGNETIC COIL QUANTITY | 1 |
| DUTY TYPE | CONTINUOUS |
| ACTUATOR STROKE TYPE | PUSH |
| POWER TAKEOFF CONNECTION TYPE | INTERNAL PLUNGER |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| TERMINAL LOCATION | BASE |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| BODY HEIGHT | 0.988 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 30.0 DC MAXIMUM |
| CURRENT RATING | 900.0 MILLIAMPERES NOMINAL |
| LINEAR FORCE DELIVERED | 18.00 POUNDS |
| ENERGIZING STROKE MAXIMUM LENGTH | 0.312 INCHES |
| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT |
