NSN 5940-00-079-8987
Part Details | STUD TERMINAL
5940-00-079-8987 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Alternate Parts: 1256007P1, 801C066605B, 801C0666-05-B, 801C06665, 801C0666-5, 5940-00-079-8987, 00-079-8987, 5940000798987, 000798987
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 13, 1967 | 00-079-8987 | 00887 ( TERMINAL, STUD ) |
REFERENCE DRAWINGS & PICTURES
FLANGE

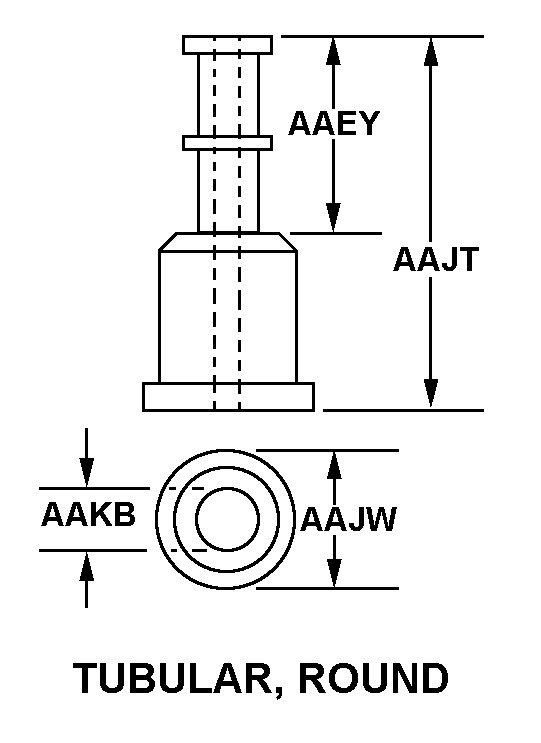

TUBULAR, ROUND
Cross Reference | NSN 5940-00-079-8987
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1256007P1 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| 801C0666-05-B | 07601 | CERAMTEC NORTH AMERICADBA CERAMASEAL DIV HERMETIC PRODUCTS |
| 801C0666-5 | 07601 | CERAMTEC NORTH AMERICADBA CERAMASEAL DIV HERMETIC PRODUCTS |
Technical Data | NSN 5940-00-079-8987
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A TUBULAR, ROUND |
| TERMINAL LENGTH | 0.375 INCHES |
| OVERALL HEIGHT | 0.864 INCHES |
| OVERALL DIAMETER | 0.812 INCHES |
| THRU-HOLE DIAMETER | 0.040 INCHES |
| MOUNTING METHOD STYLE | FLANGE |
| MOUNTING FLANGE DIAMETER | 0.250 INCHES |
| ELECTRICAL INSULATION FEATURE | STANDOFF INSULATION |
| IDENTIFICATION CODE COLOR | WHITE |
