NSN 5940-00-069-5928
Part Details | CONDUCTOR SPLICE
5940-00-069-5928 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Alternate Parts: SC13, 5940-00-069-5928, 00-069-5928, 5940000695928, 000695928
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-069-5928 | 00137 ( SPLICE, CONDUCTOR ) |
REFERENCE DRAWINGS & PICTURES

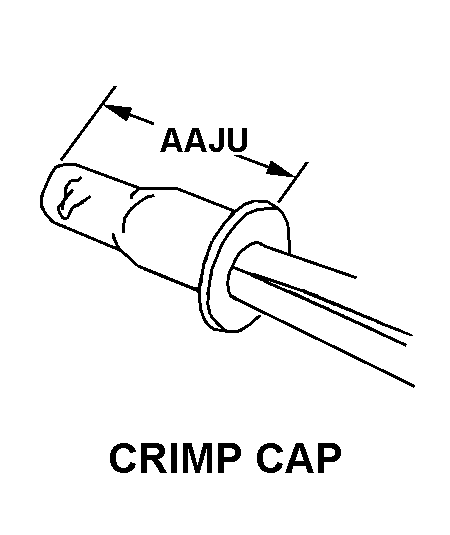

CRIMP CAP
Cross Reference | NSN 5940-00-069-5928
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC13 | 77554 | RELIANCE COMM/TEC CORPRELIABLE ELECTRIC DIV |
Technical Data | NSN 5940-00-069-5928
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | CRIMP CAP |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 8 AWG |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
