NSN 5940-00-056-9873
Part Details | CONDUCTOR SPLICE
5940-00-056-9873 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Alternate Parts: GTC 44, GTC 4-4, 26014, 2601-4, PMX0404, PMX-0404, PMXC0404, PMXC-0404, 5940-00-056-9873, 00-056-9873, 5940000569873, 000569873
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 06, 1967 | 00-056-9873 | 00137 ( SPLICE, CONDUCTOR ) |
REFERENCE DRAWINGS & PICTURES

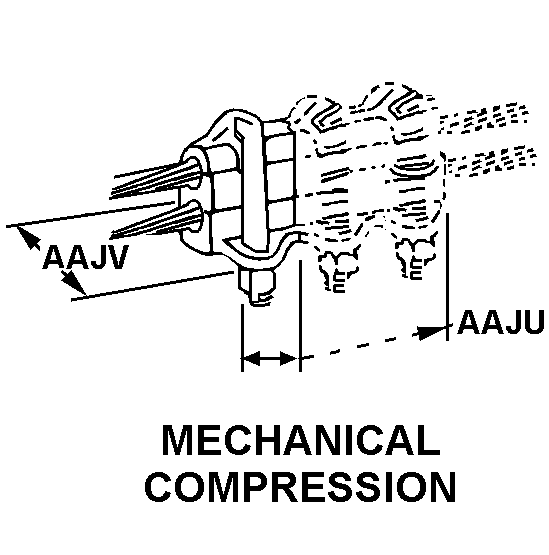

MECHANICAL COMPRESSION
Cross Reference | NSN 5940-00-056-9873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GTC 4-4 | 82168 | DOSSERT CORP |
| 2601-4 | 82133 | FRANKEL CONNECTOR CO INC |
| PMX-0404 | 98245 | GENERAL SIGNAL CORPO Z/GEDNEY CO UNIT |
| PMXC-0404 | 98245 | GENERAL SIGNAL CORPO Z/GEDNEY CO UNIT |
Technical Data | NSN 5940-00-056-9873
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | MECHANICAL COMPRESSION |
| OVERALL LENGTH | 1.219 INCHES |
| OVERALL WIDTH | 1.062 INCHES |
| MAXIMUM CONDUCTOR SIZE ACCOMMODATED | 4 AWG |
| ELECTRICAL INSULATION FEATURE | INSULATING SLEEVE |
| IDENTIFICATION CODE COLOR | BLUE |
| SPECIAL FEATURES | FITTINGS ACCOMMODATED |
