NSN 5940-00-009-5502
Part Details | STUD TERMINAL
5940-00-009-5502 A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of tool(s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes TERMINAL, FEEDTHRU. See also TERMINAL, QUICK DISCONNECT and TERMINAL SET, QUICK DISCONNECT.
Alternate Parts: 54B7174H04, 5940-00-009-5502, 00-009-5502, 5940000095502, 000095502
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 04, 1972 | 00-009-5502 | 00887 ( TERMINAL, STUD ) |
REFERENCE DRAWINGS & PICTURES

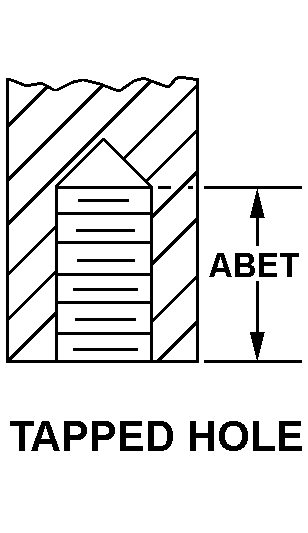

TAPPED HOLE
Cross Reference | NSN 5940-00-009-5502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 54B7174H04 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV NORTHROP GRUMMAN SYSTEMS |
Technical Data | NSN 5940-00-009-5502
| Characteristic | Specifications |
|---|---|
| TERMINAL LENGTH | 0.190 INCHES |
| WIDTH ACROSS FLATS | 0.250 INCHES |
| OVERALL HEIGHT | 0.730 INCHES |
| MOUNTING METHOD STYLE | TAPPED HOLE |
| THREAD LENGTH | 0.220 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.138 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| ELECTRICAL INSULATION FEATURE | STANDOFF INSULATION |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY NAVORD OD41152 |
