NSN 5935-00-064-2278
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-064-2278 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: HG11651, HRGA7, HG-1165-1, HRGA-7, A1057503, A-105-750-3, 5935-00-064-2278, 00-064-2278, 5935000642278, 000642278
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-064-2278 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

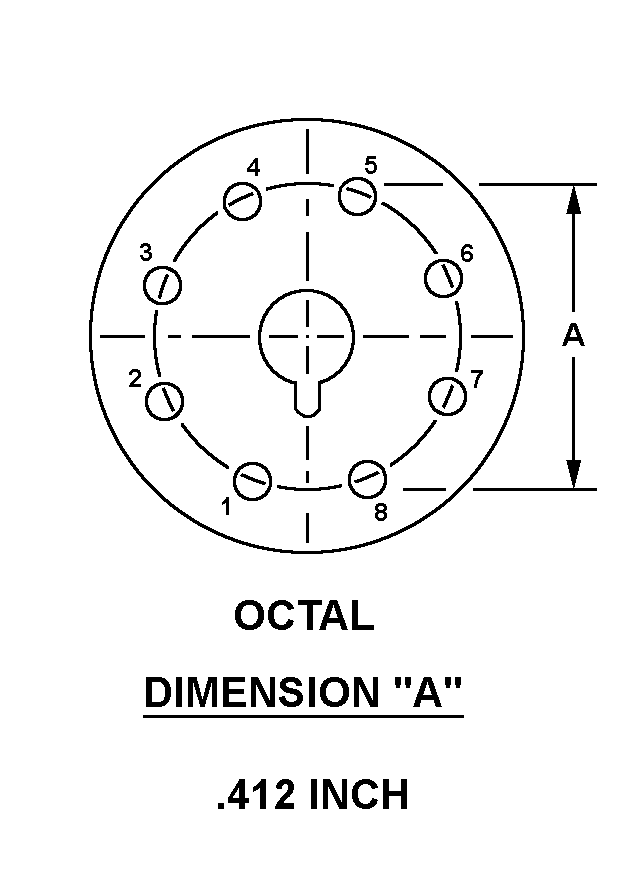

REFERENCE DRAWINGS & PICTURES
TOP OR BOTTOM MOUNT W/MOLDED SADDLE
TWO MOUNTING HOLES/SLOTS, IN-LINE
OCTAL .412 INCH
Cross Reference | NSN 5935-00-064-2278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HG-1165-1, HRGA-7 | 02289 | HI-G CO INCSUB OF NYTRONICS INC |
| A-105-750-3 | 02289 | HI-G CO INCSUB OF NYTRONICS INC |
Technical Data | NSN 5935-00-064-2278
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | OCTAL .412 INCH |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | U0000 ANY ACCEPTABLE |
| BODY STYLE | TOP OR BOTTOM MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 1.187 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.062 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING HOLE STYLE | TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.250 INCHES |
| FURNISHED ITEMS AND QUANTITY | 2 LOCK WASHER AND 2 NUT |
| SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| PRECIOUS MATERIAL | GOLD |
| PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
