NSN 5935-00-059-9467
Part Details | ELECTRICAL PLUG CONNECTOR
5935-00-059-9467 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Alternate Parts: PT06W1626P, PT06W-16-26P, 71052523530, 7105-252-3530, BT06J1626P, BT06J-16-26P, 91917001, 9191700-1, 5935-00-059-9467, 00-059-9467, 5935000599467, 000599467
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-059-9467 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

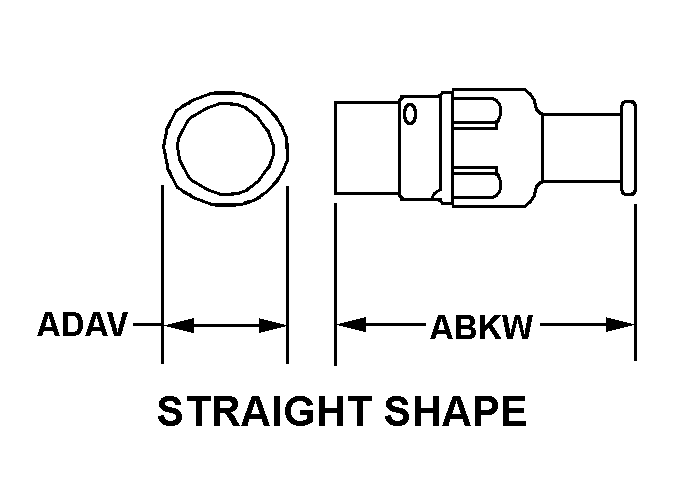

STRAIGHT SHAPE
Cross Reference | NSN 5935-00-059-9467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PT06W-16-26P | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 7105-252-3530 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
| BT06J-16-26P | 09922 | SOURIAU USA, INC. |
| 9191700-1 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5935-00-059-9467
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT SHAPE |
| OVERALL HEIGHT | 2.256 INCHES NOMINAL |
| OVERALL DIAMETER | 1.281 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 0.550 INCHES MINIMUM AND 0.616 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT |
| PRECIOUS MATERIAL | GOLD AND SILVER |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
